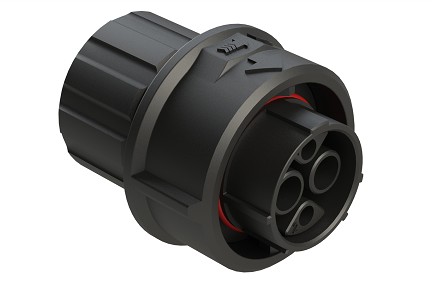

FLS612N2SHEC03 4 (2+2) Position Plug, Socket, Shell Size 12, with Endcap, Fast Lock Coupling
FLS612N2SHEC03 4 (2+2) Position Plug, Socket, Shell Size 12, with Endcap, Fast Lock Coupling
FLS612N2SHEC03 4 (2+2) Position Plug, Socket, Shell Size 12, with Endcap, Fast Lock Coupling
$0.00
Plug
PART NUMBER:
FLS612N2SHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
12
Number of Contacts:
4 (2+2)
Contact Size:
20 (1.0mm),12 (2.5mm)
Amperage:
23A, 5A(stamped) or 7.5A (machined)
Wire Range (AWG):
(SZ 12)14-12 / (SZ 20)20-30
Voltage:
500
Contact Type:
Socket
Gender:
Female
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS712N2P*, FLS012N2P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Plug, 4 (2+2) Position, Female, Shell Size 12, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Plugs|Connectors~Socket (Female)
