Home
Our Product Lines
ecomate Connectors
ecomate Aquarius Fathom Lock
14-4 (2+2) Position Mix
SQUARE FLANGE RECEPTACLES

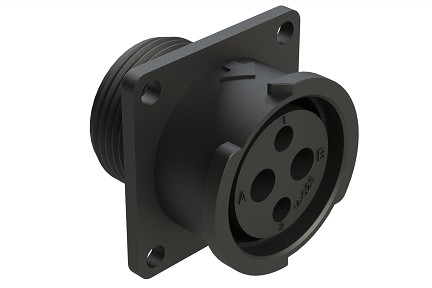

FLS014N2S03 4 (2+2) Position Square Flange Receptacle, Socket, Shell Size 14, Fast Lock Coupling
FLS014N2S03 4 (2+2) Position Square Flange Receptacle, Socket, Shell Size 14, Fast Lock Coupling
FLS014N2S03 4 (2+2) Position Square Flange Receptacle, Socket, Shell Size 14, Fast Lock Coupling
$0.00
Square Flange Receptacle
PART NUMBER:
FLS014N2S03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
4 (2+2)
Contact Size:
16
Amperage:
13A
Wire Range (AWG):
14-26
Voltage:
500
Contact Type:
Socket
Gender:
Female
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS614N2P*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 4 (2+2) Position, Female, Shell Size 14, Silicone Seal, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Receptacles~Flange Mount|Connectors~Socket (Female)
