Home
Our Product Lines
ecomate Connectors
ecomate Aquarius Fathom Lock
14-12 Position
SQUARE FLANGE RECEPTACLES

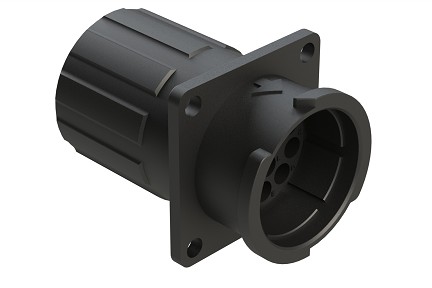

FLS014N12PHEC03 12 Position Square Flange Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling
FLS014N12PHEC03 12 Position Square Flange Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling
FLS014N12PHEC03 12 Position Square Flange Receptacle, Pin, Shell Size 14, with Endcap, Fast Lock Coupling
$0.00
Square Flange Receptacle
PART NUMBER:
FLS014N12PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
12
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
14
Number of Contacts:
12
Contact Size:
16
Amperage:
13A
Wire Range (AWG):
14-26
Voltage:
500
Contact Type:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS614N12S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 12 Position, Male, Shell Size 14, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Receptacles~Flange Mount|Connectors~Pin (Male)
