ecomate Connectors
ecomate Aquarius Fathom Lock
10-6 Position
SQUARE FLANGE RECEPTACLES

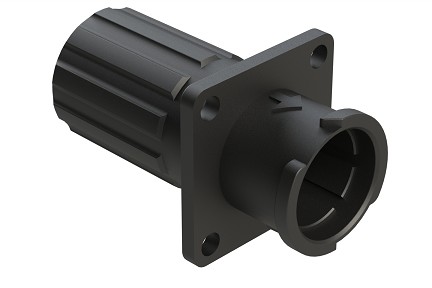

FLS010N6PHEC03 6 Position Square Flange Receptacle, Pin, Shell Size 10, with Endcap, Fast Lock Coupling
FLS010N6PHEC03 6 Position Square Flange Receptacle, Pin, Shell Size 10, with Endcap, Fast Lock Coupling
FLS010N6PHEC03 6 Position Square Flange Receptacle, Pin, Shell Size 10, with Endcap, Fast Lock Coupling
$0.00
Square Flange Receptacle
PART NUMBER:
FLS010N6PHEC03
Datasheet
:
View / Download
3D Model
:
View/Download
6
Circular
69
7.5
Plastic
SPECIFICATIONS:
Shell Size:
10
Number of Contacts:
6
Contact Size:
20
Amperage:
5A(stamped) or 7.5A (machined)
Wire Range (AWG):
20-30
Voltage:
250
Contact Type:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS610N6S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 6 Position, Male, Shell Size 10, Silicone Seal and End Cap with Individual Wire Sealing, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Receptacles~Flange Mount|Connectors~Pin (Male)
