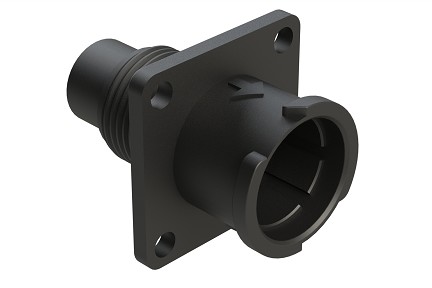

FLS010N4P03 4 Position Square Flange Receptacle, Pin, Shell Size 10, Fast Lock Coupling
FLS010N4P03 4 Position Square Flange Receptacle, Pin, Shell Size 10, Fast Lock Coupling
FLS010N4P03 4 Position Square Flange Receptacle, Pin, Shell Size 10, Fast Lock Coupling
$0.00
Square Flange Receptacle
PART NUMBER:
FLS010N4P03
Datasheet
:
View / Download
3D Model
:
View/Download
4
Circular
69
13
Plastic
SPECIFICATIONS:
Shell Size:
10
Number of Contacts:
4
Contact Size:
16
Amperage:
13A
Wire Range (AWG):
14-26
Voltage:
500
Contact Type:
Pin
Gender:
Male
Housing Material:
Thermoplastic, UL94 V-0
IP Rating:
IP67, IP68 (1.8M) and IP69k (in mated condition)
Temperature Range:
-40°C to +125°C
Rohs Compliant:
TRUE
Resistance:
5000 MEGOHMS Min
Termination Technique::
Crimp
Mating Part(s)*:
FLS610N4S*
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
Receptacle, Square Flange, 4 Position, Male, Shell Size 10, Silicone Seal, Auto-Lock
View/Download
Energy,Power,Robotics,Machine Tools,Building Automation & Control,Instrumentation Measurement,Off Road,Mining,Railway,Telecom,Data Infrastructure
EcoMate~Fathom Lock
500
Connectors~Receptacles~Flange Mount|Connectors~Pin (Male)
