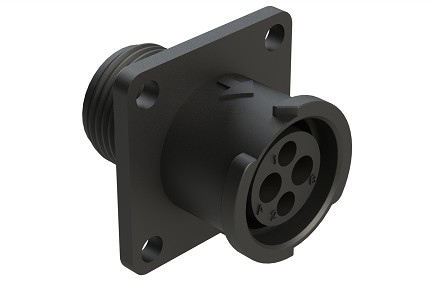

FLS010N2S03 4 (2+2) Position Square Flange Receptacle, Socket, Shell Size 10, Fast Lock Coupling
FLS010N2S03 4 (2+2) Position Square Flange Receptacle, Socket, Shell Size 10, Fast Lock Coupling

FLS010N2S03 4 (2+2) Position Square Flange Receptacle, Socket, Shell Size 10, Fast Lock Coupling

$0.00
Square Flange Receptacle
PART NUMBER: FLS010N2S03
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Shell Size: 10
  • Number of Contacts: 4 (2+2)
  • Contact Size: 16,20
  • Amperage: 13A ,5A (stamped) or 7.5A (machined)
  • Wire Range (AWG): (SZ 16) 14-26 & (SZ 20) 20-30
  • Voltage: 500
  • Contact Type: Socket
  • Gender: Female
  • Housing Material: Thermoplastic, UL94 V-0
  • IP Rating: IP67, IP68 (1.8M) and IP69k (in mated condition)
  • Temperature Range: -40°C to +125°C
  • Rohs Compliant: TRUE
  • Resistance: 5000 MEGOHMS Min
  • Termination Technique:: Crimp
  • Mating Part(s)*: FLS610N2P*
Receptacle, Square Flange, 4 (2+2) Position, Female, Shell Size 10, Silicone Seal, Auto-Lock
