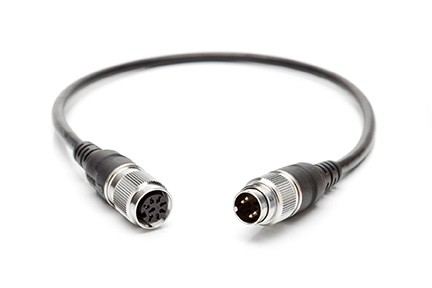

CA091 80 2400 007 - M16 AISG RET Overmolded Cable Assembly with IP68 straight male /Female cable connectors, 7 meter, PUR cable, 8 pin interface, 4 loaded contacts
CA091 80 2400 007 - M16 AISG RET Overmolded Cable Assembly with IP68 straight male /Female cable connectors, 7 meter, PUR cable, 8 pin interface, 4 loaded contacts

CA091 80 2400 007 - M16 AISG RET Overmolded Cable Assembly with IP68 straight male /Female cable connectors, 7 meter, PUR cable, 8 pin interface, 4 loaded contacts

$0.00
External Cable Assemblies
PART NUMBER: CA091802400007
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • AISG Connector A: 8 position DIN Straight Male, according to IEC 60150-9
  • AISG Connector B: 8 position DIN Straight Female, according to IEC 60150-9
  • Bending Radius: single bending 7.5 x D / multiple bending 15 x D
  • Braid Coverage: 85%
  • Color: Black
  • Current Rating: Max 5A / 40°C
  • Data Conduction Type: (2) 0.25 mm² twisted pair
  • Halogen Free: Yes
  • Jacket Material: PUR
  • Operating Temperature: -40°C to +80°C
  • Power Conduction Type: (2) 0.75 mm² twisted pair
  • Protection: IP68
  • Shield Material: Tinned Copper
  • Style: Molded
  • Total pins used: 4
  • Voltage: 300V Max
  • Size: M16
AISG RET Overmolded Cable Assembly with IP68 straight male / female cable connectors, 7 meter, PUR cable
