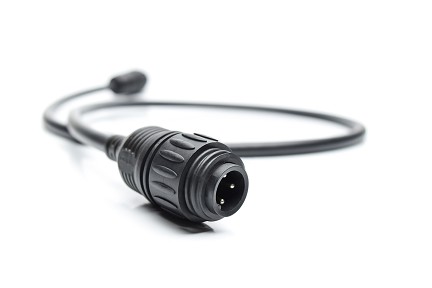

CA0162C22310012 Ecomate 4 Position (3 +PE) Circular Molded, Std. Strain relief, M-F, 14AWG, PVC, TC-ER, UL Flexible Cable Assy, 10 Meter
CA0162C22310012 Ecomate 4 Position (3 +PE) Circular Molded, Std. Strain relief, M-F, 14AWG, PVC, TC-ER, UL Flexible Cable Assy, 10 Meter

CA0162C22310012 Ecomate 4 Position (3 +PE) Circular Molded, Std. Strain relief, M-F, 14AWG, PVC, TC-ER, UL Flexible Cable Assy, 10 Meter

$0.00
Molded Cable Assembly
PART NUMBER: CA0162C22310012
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Contacts: 4
  • Length: 10 Meters (32.80 Feet)
  • Current Carrying Capacity: 16A
  • Wire Gauge: 14AWG
  • Style: Unshielded
  • Type: Round Cable
  • Female/Male: Male to Female
  • Voltage Rating: 400V
  • Insulation Resistance: 5000MΩ
  • Temp Range: -25°C TO +100°C
  • Degree of Protection: IP68 (mated condition)
  • Insert: NYLON PA 6.6, UL 94/V-0
  • Color: Black
  • Contact Plating: Silver
  • Housing Material: Thermoplastic
  • Mating Part(s): CA0161G113* Male Receptacle, CA0161F113* Female Receptacle
Ecomate 4 Position (3 +PE) Circular Molded, Std. Strain relief, M-F, 14AWG, PVC, TC-ER, UL Flexible Cable Assy, 10 Meter
