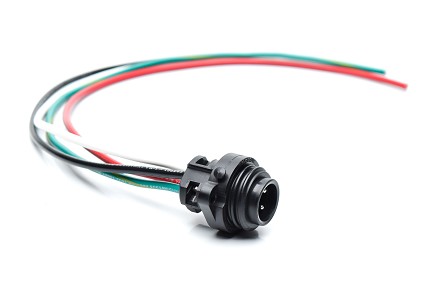

CA0161G113010 Ecomate 4 Position (3 +PE) Male Receptacle, 14AWG Leads, UL1015 , 1 Meter
CA0161G113010 Ecomate 4 Position (3 +PE) Male Receptacle, 14AWG Leads, UL1015 , 1 Meter

CA0161G113010 Ecomate 4 Position (3 +PE) Male Receptacle, 14AWG Leads, UL1015 , 1 Meter

$0.00
Receptacle with wire leads
PART NUMBER: CA0161G113010
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Contacts: 4
  • Length: 1 Meter (3.28 Feet)
  • Current Carrying Capacity: 16A
  • Wire Gauge: 14AWG
  • Style: Unshielded
  • Female/Male: Male
  • Voltage Rating: 400V
  • Insulation Resistance: 100MΩ
  • Temp Range: -25°C TO +100°C
  • Degree of Protection: IP68 (mated condition)
  • Insert: NYLON PA 6.6, UL 94/V-0
  • Color: Black
  • Contact Plating: Silver
  • Housing Material: Thermoplastic
  • Mating Part(s): CA0161B223* Cable Assembly, C01620D00310012 Plug
Ecomate 4 Position (3 +PE) Male Receptacle, 14AWG Leads, UL1015 , 1 Meter
