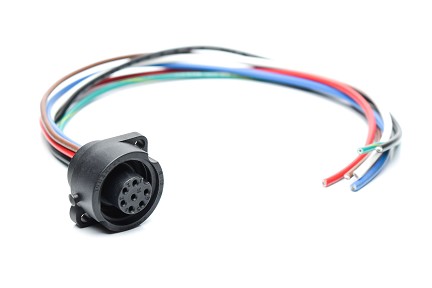

CA0161F116003 Ecomate 7 Position (6 +PE) Female Receptacle, 16AWG Leads, UL1015 , 0.3 Meter
CA0161F116003 Ecomate 7 Position (6 +PE) Female Receptacle, 16AWG Leads, UL1015 , 0.3 Meter

CA0161F116003 Ecomate 7 Position (6 +PE) Female Receptacle, 16AWG Leads, UL1015 , 0.3 Meter

$0.00
Receptacle with wire leads
PART NUMBER: CA0161F116003
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Contacts: 7
  • Length: 0.3 Meter (0.98 Feet)
  • Current Carrying Capacity: 13A
  • Wire Gauge: 16AWG
  • Style: Unshielded
  • Female/Male: Female
  • Voltage Rating: 250V
  • Insulation Resistance: 100MΩ
  • Temp Range: -25°C TO +100°C
  • Degree of Protection: IP68 (mated condition)
  • Insert: NYLON PA 6.6, UL 94/V-0
  • Color: Black
  • Contact Plating: Silver
  • Housing Material: Thermoplastic
  • Mating Part(s): CA0161A226* Cable Assembly, C01610H00600012 Plug
Ecomate 7 Position (6 +PE) Male Receptacle, 16AWG Leads, UL1015 , 0.3 Meter
