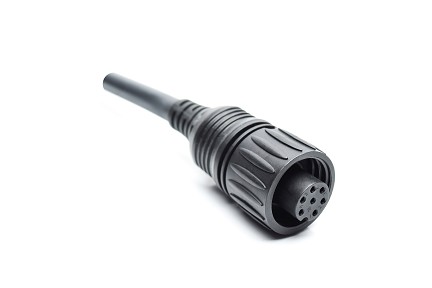

CA0161B22601012 Ecomate 7 Position (6 +PE) Circular Molded, Std. Strain relief, Female to Leads, 16AWG, PVC, TC-ER, UL Flexible Cable Assy, 1 Meter
CA0161B22601012 Ecomate 7 Position (6 +PE) Circular Molded, Std. Strain relief, Female to Leads, 16AWG, PVC, TC-ER, UL Flexible Cable Assy, 1 Meter

CA0161B22601012 Ecomate 7 Position (6 +PE) Circular Molded, Std. Strain relief, Female to Leads, 16AWG, PVC, TC-ER, UL Flexible Cable Assy, 1 Meter

$0.00
Molded Cable Assembly
PART NUMBER: CA0161B22601012
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • No. of Contacts: 7
  • Length: 1 Meter (3.28 Feet)
  • Current Carrying Capacity: 13A
  • Wire Gauge: 16AWG
  • Style: Unshielded
  • Type: Round Cable
  • Female/Male: Female
  • Voltage Rating: 250V
  • Insulation Resistance: 100MΩ
  • Temp Range: -25°C TO +100°C
  • Degree of Protection: IP68 (mated condition)
  • Insert: NYLON PA 6.6, UL 94/V-0
  • Color: Black
  • Contact Plating: Silver
  • Housing Material: Thermoplastic
  • Mating Part(s): CA0161G116* Receptacle with leads
Ecomate 7 Position (6 +PE) Circular Molded, Std. Strain relief, Female to Leads, 16AWG, PVC, TC-ER, UL Flexible Cable Assy, 1 Meter
