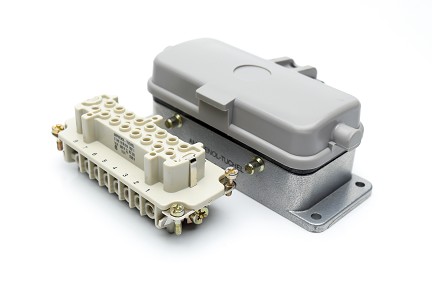

C14610E0169421 16+PE Receptacle Kit, Single Latch, Spring Cover
C14610E0169421 16+PE Receptacle Kit, Single Latch, Spring Cover

C14610E0169421 16+PE Receptacle Kit, Single Latch, Spring Cover

$0.00
16 Position - Panel Receptacle
PART NUMBER: C14610E0169421
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Contacts: 16+PE
  • Contact Plating: Silver Plated
  • Clearance: >4.0mm
  • Color: Gray
  • Contact Material: Brass
  • Contact Resistance: <5mΩ
  • Creepage: >6.3mm
  • Current Carrying Capacity: Derated
  • Gasket: NBR
  • Insert Material: PC GV
  • Insertion/Withdrawal Force: 80-100N
  • Knurled Screw/Nut: CuZn
  • Male/Female: Female
  • Minimum Mating Cycles: >500
  • Operating Temperature: -40°C to +100°C
  • Protection: IP65
  • Rated Current: 19
  • Rated Impulse Voltage: 6000V
  • Rated Voltage: 600
  • Termination: Screw
  • Wire Gauge: 20/12 (0.25-2.5mm²)
16+PE- Panel Receptacle Kit, Female, 20/12AWG
