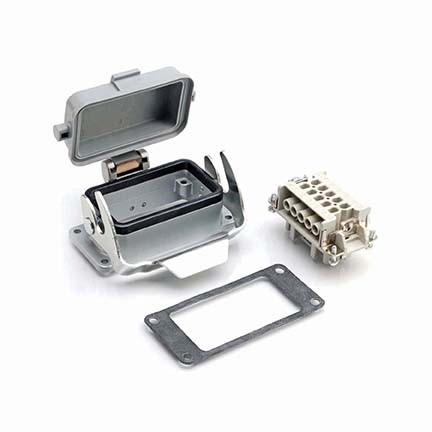

C14610E0109421 10 + PE Receptacle Kit, Single Latch, Spring Cover

C14610E0109421 10 + PE Receptacle Kit, Single Latch, Spring Cover

C14610E0109421 10 + PE Receptacle Kit, Single Latch, Spring Cover

$0.00

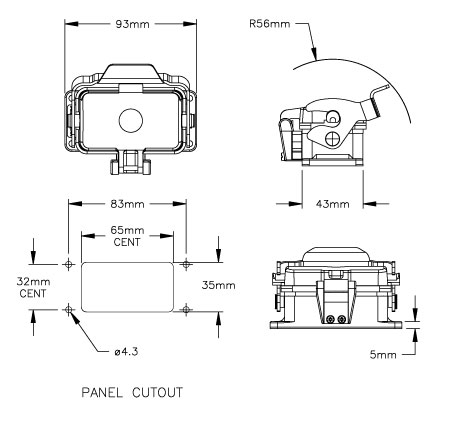

10 Position - Panel Receptacle

PART NUMBER: C14610E0109421

Datasheet:

View / Download

Contacts: 10+PE
Contact Plating: Silver Plated
Clearance: >4.0mm
Color: Gray
Contact Material: Brass
Contact Resistance: <5mΩ
Creepage: >6.3mm
Current Carrying Capacity: Derated
Gasket: NBR
Insert Material: PC GV
Insertion/Withdrawal Force: 40-50N
Knurled Screw/Nut: CuZn
Male/Female: Female
Minimum Mating Cycles: >500
Operating Temperature: -40°C to +100°C
Protection: IP65
Rated Current: 19
Rated Impulse Voltage: 6000V
Rated Voltage: 600
Termination: Screw
Wire Gauge: 20/12 (0.25-2.5mm²)

QUANTITY

Description

10+PE - Panel Receptacle Kit, Female, 20/12AWG
