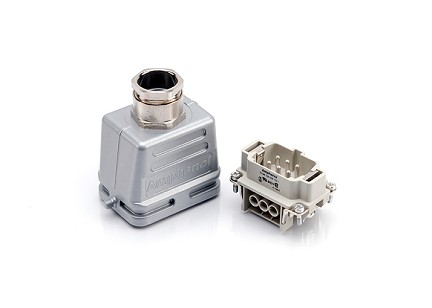

C14610E0069441M 6+PE Plug Kit, Single Latch, Top Entry Low, M25
C14610E0069441M 6+PE Plug Kit, Single Latch, Top Entry Low, M25

C14610E0069441M 6+PE Plug Kit, Single Latch, Top Entry Low, M25

$0.00
6 Position - Plug
PART NUMBER: C14610E0069441M
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Version: Top Entry/Low Profile
  • Contacts: 6+PE
  • Contact Plating: Silver Plated
  • Cable OD Range: 8.5-17mm
  • Clearance: >4.0mm
  • Color: Gray
  • Contact Material: Brass
  • Contact Resistance: <5mΩ
  • Creepage: >6.3mm
  • Current Carrying Capacity: Derated
  • Gasket: NBR
  • Insert Material: PC GV
  • Insertion/Withdrawal Force: 20-30N
  • Knurled Screw/Nut: CuZn
  • Male/Female: Male
  • Minimum Mating Cycles: >500
  • Operating Temperature: -40°C to +100°C
  • Protection: IP65
  • Rated Current: 22
  • Rated Impulse Voltage: 6000V
  • Rated Voltage: 600
  • Termination: Screw
  • Thread: M25
  • Wire Gauge: 20/12 (0.25-2.5mm²)
6+PE - Plug Kit, Male, 20/12AWG. Single top entry low profile hood
