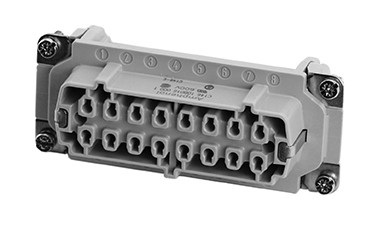

  6. C14610B0160001 16+PE Heavy duty female contact insert for stamped crimp contacts. Contacts ordered separately. E16
C14610B0160001 16+PE Heavy duty female contact insert for stamped crimp contacts. Contacts ordered separately. E16
C14610B0160001 16+PE Heavy duty female contact insert for stamped crimp contacts. Contacts ordered separately. E16

C14610B0160001 16+PE Heavy duty female contact insert for stamped crimp contacts. Contacts ordered separately. E16

$0.00
Contact Insert
PART NUMBER: C14610B0160001
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Clearance: > 4.0 mm
  • Color: Grey
  • Contact Plating: Silver
  • Contact Resistance: < 5mΩ
  • Contacts: 16+PE
  • Creepage: > 6.3mm
  • Insert Material: PC
  • Insertion/Withdrawal Force: 45-60 N
  • Insulation Resistance: > 10(10) Ω
  • Knurled Screw/Nut: CuZn (brass)
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP00 unmated, IP20 mated
  • Rated Current: 16A
  • Rated Impulse Voltage: 6000V
  • Rated Voltage: max 500V (600V UL/CSA)
  • Size: E16
  • Termination: Crimp
  • Type: Female
  • Weight: 49g
  • Wire Gauge: 0.14 - 4mm²
  • Voltage Rating UL/CSA: 600
  • Rated Voltage IEC 60664-1: 500V
16+PE Heavy duty female contact insert for stamped crimp contacts. May be engaged or disengaged when live but without electrical load. If this connector is mated or unmated under load, the load shall be reduced to 10% of the rated current.
