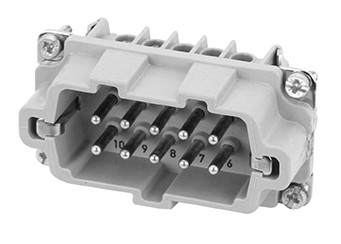

  6. C14610A0031023 3+PE; 2 delayed mating contacts. Male insert with wire protection for screw termination, Size E10. Comparable to PN# 9340032601
C14610A0031023 3+PE; 2 delayed mating contacts. Male insert with wire protection for screw termination, Size E10. Comparable to PN# 9340032601
C14610A0031023 3+PE; 2 delayed mating contacts. Male insert with wire protection for screw termination, Size E10. Comparable to PN# 9340032601

C14610A0031023 3+PE; 2 delayed mating contacts. Male insert with wire protection for screw termination, Size E10. Comparable to PN# 9340032601

$0.00
Contact Insert
PART NUMBER: C14610A0031023
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Color: Grey
  • Contact Material: CuZn (brass)
  • Contact Plating: Silver
  • Contact Resistance: < 5mΩ
  • Contacts: 3+PE; 2 delayed mating contacts
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP00 unmated, IP20 mated
  • Rated Impulse Voltage: 8000V
  • Rated Voltage: 660V
  • Size: E10
  • Termination: Screw
  • Type: Male
  • Weight: 49g
  • Wire Gauge: 0.5 - 2.5mm²
  • Rated Voltage UL: 600V
  • Rated Current: 16A
3+PE with 2 delayed mating contacts. Male insert with wire protection for screw termination.
