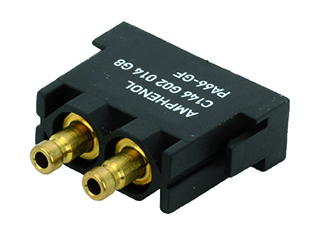

C146 G02 014 G8 Pneumatic pin module. (2.5 mm)
C146 G02 014 G8 Pneumatic pin module. (2.5 mm)

C146 G02 014 G8 Pneumatic pin module. (2.5 mm)

$0.00
Pin Module
PART NUMBER: C146G02014G8
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Color: Black
  • Contact Material: Brass MS 58
  • Contact Resistance: 0mΩ
  • Contacts: 2
  • Insert Material: PA 6.6
  • Lifetime: > 500 mating cycles
  • Operating Temperature: -20°C to +100°C
  • Termination: Tube
  • Type: Pin
  • Wire Gauge: 2.5mm²
Pneumatic pin module delivers power, signal and pneumatic within a single connector. (2.5 mm) Very stable brass contacts; pneumatic socket contacts with barrier, closes when the connector is open. Single or double connections for two.5 or 4mm PTFE (Teflon) tubes.
