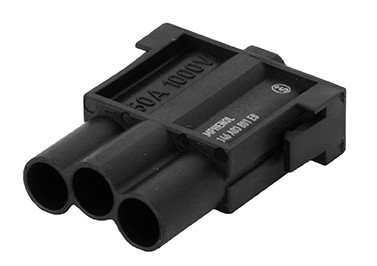

  6. C146 A03 801 E8 Pin module for turned 3.6mm contacts, silver plated
C146 A03 801 E8  Pin module for turned 3.6mm contacts, silver plated
C146 A03 801 E8 Pin module for turned 3.6mm contacts, silver plated

C146 A03 801 E8 Pin module for turned 3.6mm contacts, silver plated

$0.00
Pin Module
PART NUMBER: C146A03801E8
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Clearance: >14 mm
  • Color: Black
  • Contact Material: CuZn (brass)
  • Contact Plating: Silver
  • Contact Resistance: <5 mΩ
  • Contacts: 3
  • Creepage: >14 mm
  • Insert Material: PA
  • Insertion/Withdrawal Force: 20-30 N
  • Insulation Resistance: > 10(10)  Ω
  • Lifetime: > 500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP20
  • Rated Current: 50A
  • Rated Impulse Voltage: 8000V
  • Rated Voltage: 1000V
  • Size: 3.6mm
  • Termination: Crimp
  • Type: Pin
  • Wire Gauge: 1.5 - 10mm² (16-8 AWG)
  • Rated Voltage UL: 600V
Pin module for turned 3.6mm contacts. heavy|mate® M series connectors may be engaged or disengaged when live but without electrical load. If connector is mated or unmated under load, the load shall be reduced to 10% of rated current. High profile hoods/ho
