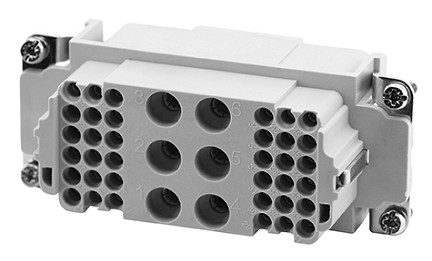

  6. C146 10B042 500 13 6+36+PE Female insert with power and signal contacts, 42+PE, E16 + crimp contacts. Comparable to PN# 9380423101
C146 10B042 500 13 6+36+PE Female insert with power and signal contacts, 42+PE, E16 + crimp contacts. Comparable to PN# 9380423101
C146 10B042 500 13 6+36+PE Female insert with power and signal contacts, 42+PE, E16 + crimp contacts. Comparable to PN# 9380423101

C146 10B042 500 13 6+36+PE Female insert with power and signal contacts, 42+PE, E16 + crimp contacts. Comparable to PN# 9380423101

$0.00
Contact Insert
PART NUMBER: C14610B04250013
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Color: Grey
  • Contact Material: CuZn (brass)
  • Contact Plating: Silver
  • Contact Resistance: < 5mΩ
  • Contacts: 6/36+PE
  • Insert Material: PC
  • Insulation Resistance: > 10(10) Ω
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Rated Impulse Voltage: 8000V/2500V
  • Rated Voltage: 690V/160V
  • Size: E16 + crimp contacts
  • Termination: Crimp
  • Type: Socket
  • Version: Turned crimp contact
  • Wire Gauge: 1.5 - 6mm² (16-10 AWG)
  • Voltage Rating UL/CSA: 600
  • Rated Voltage IEC 60664-1: 830V
  • Rated Impulse Voltage IEC 60664-21: 8000V
  • Rated Current: 80A
6+36+PE Female insert with power and signal contacts.
