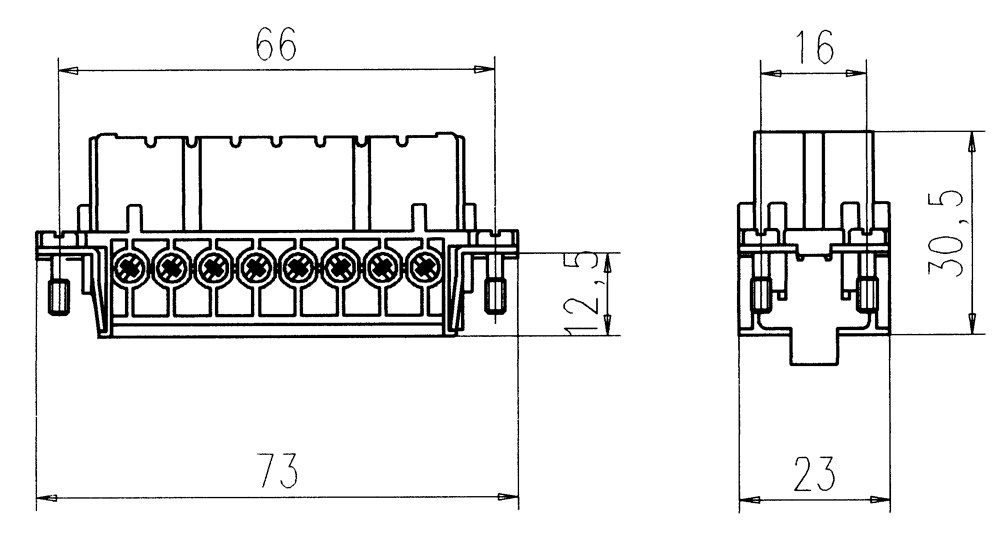

C146 10B016 102 4 16+PE Heavy Duty Female Contact Insert With Wire Protection For Screw Termination. Size A16. Comparable to PN# 9200162814
C146 10B016 102 4 16+PE Heavy Duty Female Contact Insert With Wire Protection For Screw Termination. Size A16. Comparable to PN# 9200162814
C146 10B016 102 4 16+PE Heavy Duty Female Contact Insert With Wire Protection For Screw Termination. Size A16. Comparable to PN# 9200162814
$0.00
Contact Insert
PART NUMBER:
C14610B0161024
Datasheet
:
View / Download
17
Rectangular / Other
20
14
SPECIFICATIONS:
Contact Material:
CuZn (brass)
Contact Plating:
Silver
Contact Resistance:
< 5 m ohms
Contacts:
16+PE
Insert Material:
PA
Insulation Resistance:
>10(10) ohms
Lifetime:
>500 mating cycles
Operating Temperature:
-40°C to +125°C
Protection:
IP00 unmated, IP20 mated
Rated Current:
16A
Rated Impulse Voltage:
4000V
Rated Voltage:
250V
Size:
A16
Termination:
Screw
Type:
Female
Version:
With wire protection
Weight:
73g
Wire Gauge:
0.5 - 2.5mm²
Voltage Rating UL/CSA:
600
Put me on the Waiting List
QUANTITY
+
-
REQUEST A QUOTE
Description
16+PE Heavy duty female contact insert with wire protection for screw termination. May be engaged or disengaged when live but without electrical load. If used as plug and socket device the load shall be reduced to 10% of the rated current.
Heavy Equipment,Automation,Marine,Agriculture,Construction,Transportation,Off Road,Mining,Industrial,Railway,Conveyors,Packaging Equipment,Motion Control,Servo Motors,Distributed Power,Renewable Energy,Water Resistance,Harsh Environments
HeavyMate~A
600
Connectors~Contact Inserts|Connectors~Screw Termination|Connectors~Socket (Female)
