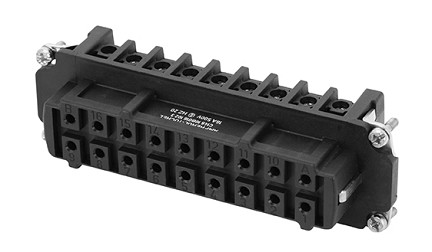

C146 10B016 002 3  16+PE; 2 delayed mating contacts.Female insert without wire protection for screw termination. E24.
C146 10B016 002 3 16+PE; 2 delayed mating contacts.Female insert without wire protection for screw termination. E24.

C146 10B016 002 3 16+PE; 2 delayed mating contacts.Female insert without wire protection for screw termination. E24.

PART NUMBER:C14610B0160023

Datasheet: datasheetDownload datasheet View / Download




SPECIFICATIONS:






  • Color:Black
  • Contact Material:CuZn (brass)
  • Contact Plating:Silver
  • Contact Resistance:< 5 m ohms
  • Contacts:16+PE; 2 delayed mating contacts
  • Insulation Resistance:>10(10) ohms
  • Lifetime:>500 mating cycles
  • Operating Temperature:-40°C to +125°C
  • Protection:IP00 unmated, IP20 mated
  • Rated Impulse Voltage:8000V
  • Rated Voltage:660V
  • Size:E24
  • Termination:Screw
  • Type:Female
  • Weight:107g
  • Wire Gauge:0.5 - 2.5mm²
  • Rated Voltage UL:600V
  • Rated Current:16A
16+PE; 2 delayed mating contacts; Female insert without wire protection for screw termination.
