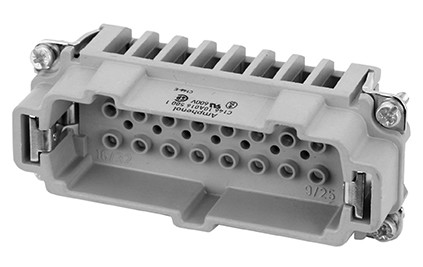

  6. C146 10A016 500 1 16+PE Heavy duty male contact insert for turned crimp contacts. Contacts ordered separately. Size E16. Comparable to PN# 9330162602
C146 10A016 500 1  16+PE Heavy duty male contact insert for turned crimp contacts. Contacts ordered separately.  Size E16. Comparable to PN# 9330162602
C146 10A016 500 1 16+PE Heavy duty male contact insert for turned crimp contacts. Contacts ordered separately. Size E16. Comparable to PN# 9330162602

C146 10A016 500 1 16+PE Heavy duty male contact insert for turned crimp contacts. Contacts ordered separately. Size E16. Comparable to PN# 9330162602

$0.00
Contact Insert
PART NUMBER: C14610A0165001
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Clearance: > 4.0 mm
  • Color: Grey
  • Contact Plating: Silver
  • Contact Resistance: < 5 m ohms
  • Contacts: 16+PE
  • Creepage: > 6.3mm
  • Insert Material: PC
  • Insertion/Withdrawal Force: 45-60 N
  • Insulation Resistance: >10(10) ohms
  • Knurled Screw/Nut: CuZn (brass)
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP00 unmated, IP20 mated
  • Rated Current: 16A
  • Rated Impulse Voltage: 6000V
  • Rated Voltage: max 500V (600V UL/CSA)
  • Size: E16
  • Termination: Crimp
  • Type: Male
  • Weight: 45g
  • Wire Gauge: 0.14 - 4mm²
  • Voltage Rating UL/CSA: 600
  • Rated Voltage IEC 60664-1: 500V
16+PE Heavy duty male contact insert for turned crimp contacts. May be engaged or disengaged when live but without electrical load. If this connector is mated or unmated under load, the load shall be reduced to 10% of the rated current.
