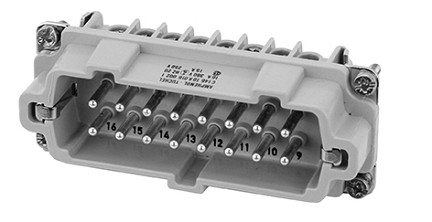

  6. C146 10A016 102 1 16+PE Heavy duty male contact insert with wire protection for screw termination. Contacts included. Size E16. Comparable to PN# 9330162601
C146 10A016 102 1  16+PE Heavy duty male contact insert with wire protection for screw termination. Contacts included.  Size E16. Comparable to PN# 9330162601
C146 10A016 102 1 16+PE Heavy duty male contact insert with wire protection for screw termination. Contacts included. Size E16. Comparable to PN# 9330162601

C146 10A016 102 1 16+PE Heavy duty male contact insert with wire protection for screw termination. Contacts included. Size E16. Comparable to PN# 9330162601

$0.00
Contact Insert
PART NUMBER: C14610A0161021
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Clearance: > 4.0 mm
  • Color: Grey
  • Contact Plating: Silver
  • Contact Resistance: < 5 m ohms
  • Contacts: 16+PE
  • Creepage: > 6.3mm
  • Insert Material: PC
  • Insertion/Withdrawal Force: 80-100 N
  • Insulation Resistance: >10(10) ohms
  • Knurled Screw/Nut: CuZn (brass)
  • Lifetime: >500 mating cycles
  • Operating Temperature: -40°C to +125°C
  • Protection: IP00 unmated, IP20 mated
  • Rated Current: 16A
  • Rated Impulse Voltage: 6000V
  • Rated Voltage: max 500V (600V UL/CSA)
  • Size: E16
  • Termination: Screw
  • Type: Male
  • Weight: 45g
  • Wire Gauge: 0.14- 2.5mm²
  • Voltage Rating UL/CSA: 600
  • Rated Voltage IEC 60664-1: 500V
16+PE Heavy duty male contact insert with wire protection for screw termination. May be engaged or disengaged when live but without electrical load. If this connector is mated or unmated under load, the load shall be reduced to 10% of the rated current.  Contacts included.
