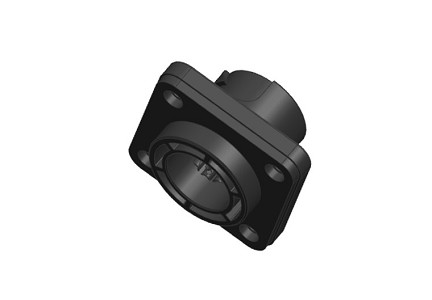

C09131T1142095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14B Arrangement, Gold Contact Plating
C09131T1142095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14B Arrangement, Gold Contact Plating

C09131T1142095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14B Arrangement, Gold Contact Plating

$0.00
Female Square Flange Receptacle
PART NUMBER: C09131T1142095U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 14
  • Contact Diameter: 1.0mm
  • Gender: Female (Socket)
  • Current Rating: 3A
  • Contact Plating: Gold
  • Rated Voltage IEC 60664-1: 32
  • Wire Gauge: 22 AWG
  • Termination: Solder
  • Housing: Thermoplastic
  • Color: Black
  • Shape: Circular
  • Mount: Front Mount
  • Operating Temperature: -40°C to +100°C
  • Protection Rating: IP67 (in mated condition)
  • RoHS Compliant: Yes
  • Sealing Material: Chloroprene, silicone
  • Mating Cycles: >1000
  • Rated Impulse Withstanding Voltage IEC 60664-169: 800
  • Insulation Resistance: >10 Ohm
  • Contact Resistance: 5mOhm
  • Mating Part(s): C09131H1142005U,C09131H1142025U
Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14B Arrangement, Gold Contact Plating
