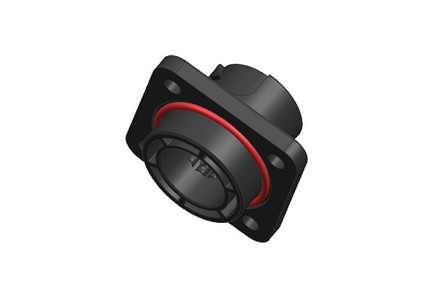

C09131T0141005U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14A Arrangement, Silver Contact Plating
C09131T0141005U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14A Arrangement, Silver Contact Plating

C09131T0141005U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14A Arrangement, Silver Contact Plating

$0.00
Female Square Flange Receptacle
PART NUMBER: C09131T0141005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 14
  • Contact Diameter: 1.0mm
  • Gender: Female (Socket)
  • Current Rating: 3A
  • Contact Plating: Silver
  • Rated Voltage IEC 60664-1: 32
  • Wire Gauge: 22 AWG
  • Termination: Solder
  • Housing: Thermoplastic
  • Color: Black
  • Shape: Circular
  • Mount: Front Mount
  • Operating Temperature: -40°C to +100°C
  • Protection Rating: IP67 (in mated condition)
  • RoHS Compliant: Yes
  • Sealing Material: Chloroprene, silicone
  • Mating Cycles: >500
  • Rated Impulse Withstanding Voltage IEC 60664-180: 800
  • Insulation Resistance: >10 Ohm
  • Contact Resistance: 5mOhm
  • Mating Part(s): C09131H0141005U,C09131H0141025U
Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 14 Contacts, 14A Arrangement, Silver Contact Plating

Related Items

C091 31H014 100 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Cable Diameter 4-8.5mm
C091 31H014 100 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Cable Diameter 4-8.5mm
REQUEST A QUOTE

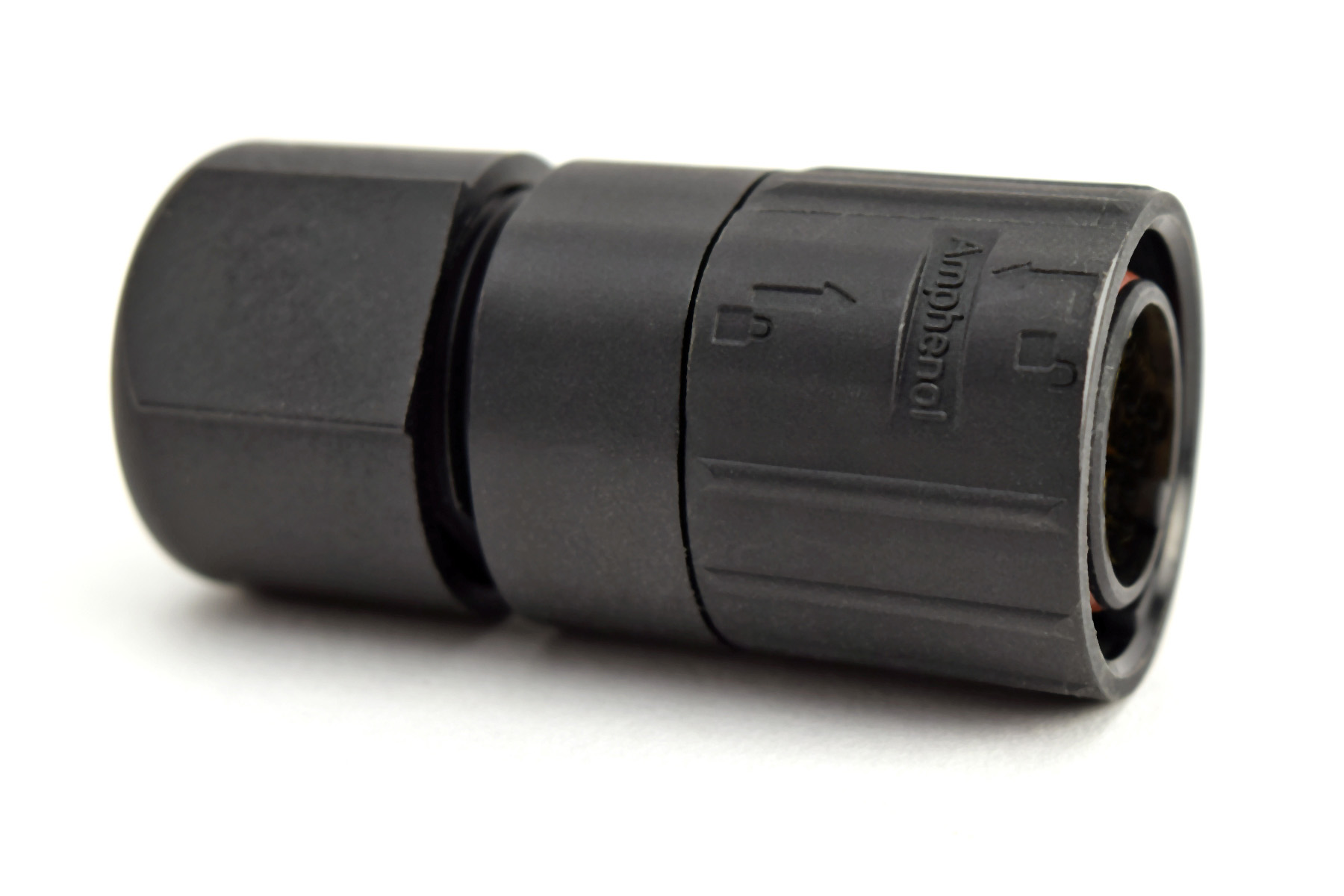

C091 31H014 102 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Cable Diameter 8.5-10.5mm
