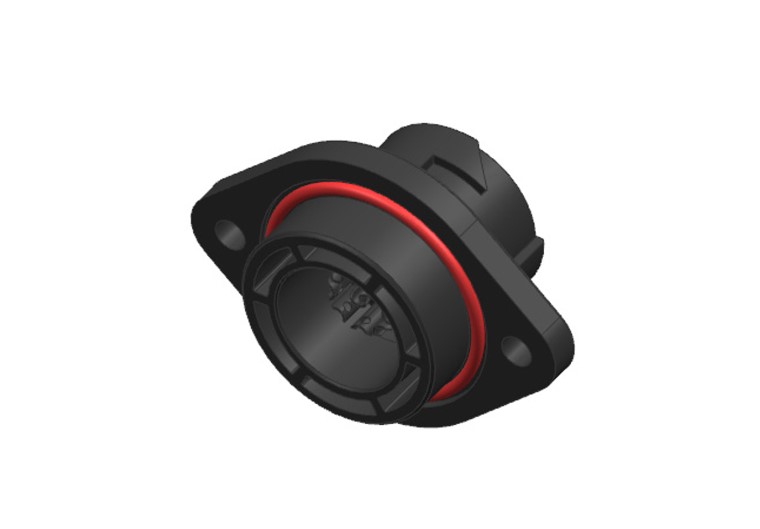

C09131T0122085U Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 12 Contacts, Gold Contact Plating
C09131T0122085U Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 12 Contacts, Gold Contact Plating

C09131T0122085U Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 12 Contacts, Gold Contact Plating

$0.00
Female Two Flange Receptacle
PART NUMBER: C09131T0122085U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 12
  • Contact Diameter: 1.0mm
  • Gender: Female (Socket)
  • Current Rating: 3A
  • Contact Plating: Gold
  • Rated Voltage IEC 60664-1: 32
  • Wire Gauge: 22 AWG
  • Termination: Solder
  • Housing: Thermoplastic
  • Color: Black
  • Shape: Circular
  • Mount: Front Mount
  • Operating Temperature: -40°C to +100°C
  • Protection Rating: IP67 (in mated condition)
  • RoHS Compliant: Yes
  • Sealing Material: Chloroprene, silicone
  • Mating Cycles: >1000
  • Rated Impulse Withstanding Voltage IEC 60664-91: 800
  • Insulation Resistance: >10 Ohm
  • Contact Resistance: 5mOhm
  • Mating Part(s): C09131H0122005U,C09131H0122025U
Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 12 Contacts, Gold Contact Plating
