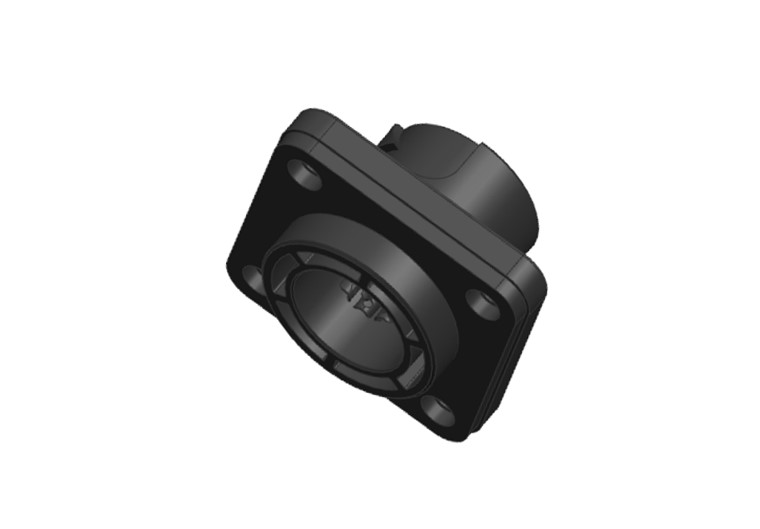

  6. C09131T0072095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 7 Contacts, 7A Arrangement, Gold Contact Plating
C09131T0072095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 7 Contacts, 7A Arrangement, Gold Contact Plating
C09131T0072095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 7 Contacts, 7A Arrangement, Gold Contact Plating

C09131T0072095U Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 7 Contacts, 7A Arrangement, Gold Contact Plating

$0.00
Female Square Flange Receptacle
PART NUMBER: C09131T0072095U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 7
  • Contact Diameter: 1.5mm
  • Gender: Female (Socket)
  • Current Rating: 7A
  • Contact Plating: Gold
  • Rated Voltage IEC 60664-1: 100
  • Wire Gauge: 20 AWG
  • Termination: Solder
  • Housing: Thermoplastic
  • Color: Black
  • Shape: Circular
  • Mount: Front Mount
  • Operating Temperature: -40°C to +100°C
  • Protection Rating: IP67 (in mated condition)
  • RoHS Compliant: Yes
  • Sealing Material: Chloroprene, silicone
  • Mating Cycles: >1000
  • Rated Impulse Withstanding Voltage IEC 60664-164: 1500
  • Insulation Resistance: >10 Ohm
  • Contact Resistance: 5mOhm
  • Mating Part(s): C09131H0072005U,C09131H0072025U
Female Square Flange Receptacle, Front Mount, Quicklock, Size M16, 7 Contacts, 7A Arrangement, Gold Contact Plating
