C09131T0042085U Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 4 Contacts, Gold Contact Plating
C09131T0042085U Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 4 Contacts, Gold Contact Plating

C09131T0042085U Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 4 Contacts, Gold Contact Plating

$0.00
Female Two Flange Receptacle
PART NUMBER: C09131T0042085U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 4
  • Contact Diameter: 1.5mm
  • Gender: Female (Socket)
  • Current Rating: 10A
  • Contact Plating: Gold
  • Rated Voltage IEC 60664-1: 150
  • Wire Gauge: 20 AWG
  • Termination: Solder
  • Housing: Thermoplastic
  • Color: Black
  • Shape: Circular
  • Mount: Front Mount
  • Operating Temperature: -40°C to +100°C
  • Protection Rating: IP67 (in mated condition)
  • RoHS Compliant: Yes
  • Sealing Material: Chloroprene, silicone
  • Mating Cycles: >1000
  • Rated Impulse Withstanding Voltage IEC 60664-84: 1500
  • Insulation Resistance: >10 Ohm
  • Contact Resistance: 5mOhm
  • Mating Part(s): C09131H0042005U,C09131H0042025U
Female Two Flange Receptacle, Front Mount, Quicklock, Size M16, 4 Contacts, Gold Contact Plating

Related Items

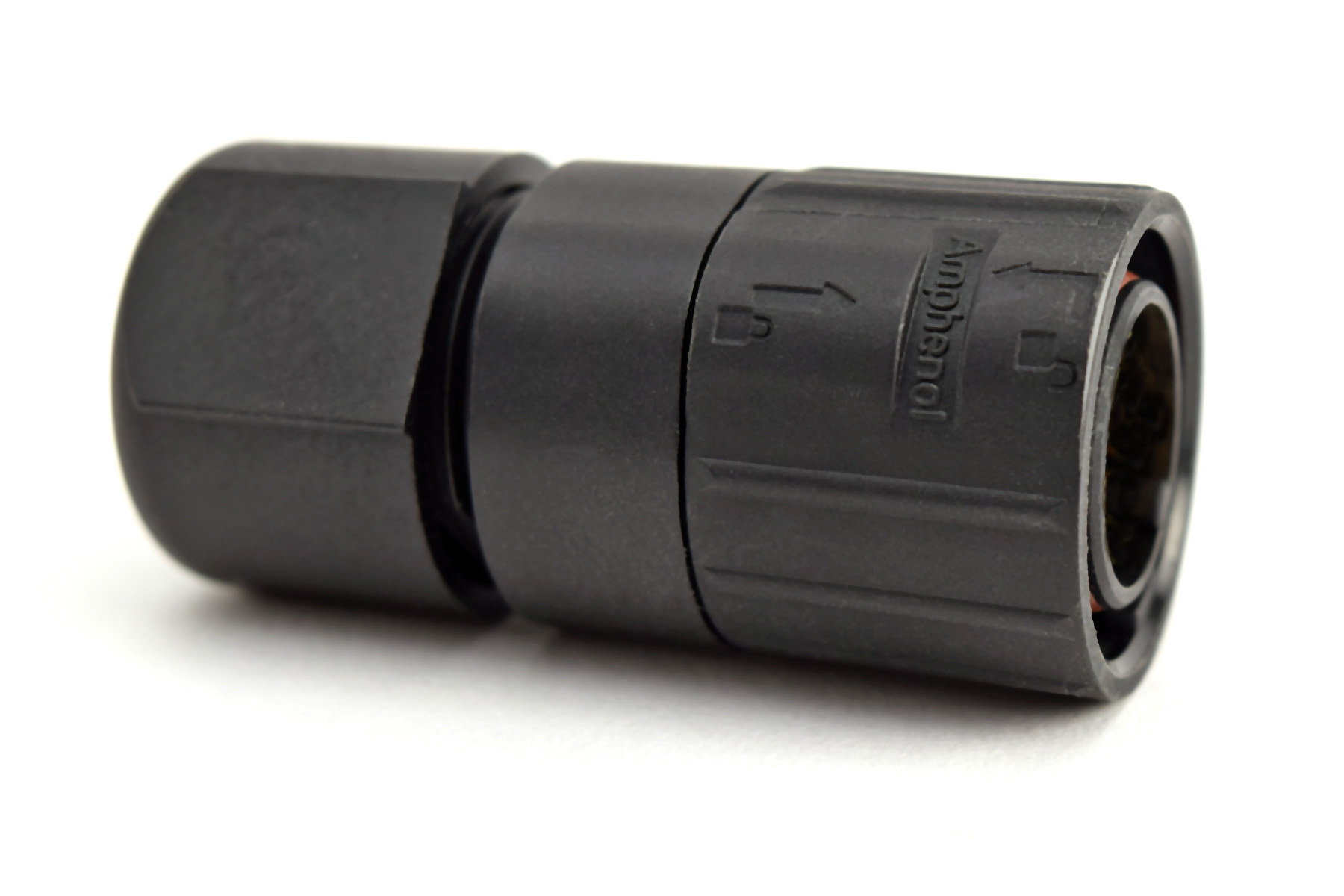

C091 31H004 200 5 U Male Cable Connector, Quicklock, Size M16, 4 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
