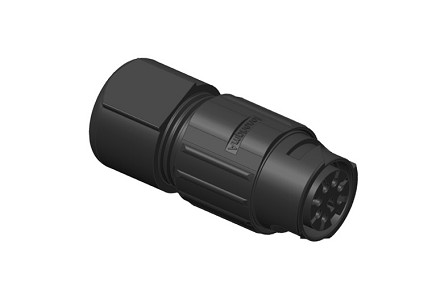

C09131D1142005U Female Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14B Arrangement, Cable Diameter 4-8.5mm
C09131D1142005U Female Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14B Arrangement, Cable Diameter 4-8.5mm

C09131D1142005U Female Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14B Arrangement, Cable Diameter 4-8.5mm

$0.00
Female Cable Connectors
PART NUMBER: C09131D1142005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 14
  • Contact Diameter: 1.0mm
  • Gender: Female (Socket)
  • Current Rating: 3A
  • Contact Plating: Gold
  • Rated Voltage IEC 60664-1: 32
  • Cable Diameter: 4 - 8.5mm
  • Wire Gauge: 22 AWG
  • Termination: Solder
  • Housing: Thermoplastic
  • Color: Black
  • Shape: Circular
  • Operating Temperature: -40°C to +100°C
  • Protection Rating: IP67 (in mated condition)
  • RoHS Compliant: Yes
  • Sealing Material: Chloroprene, silicone
  • Mating Cycles: >1000
  • Rated Impulse Withstanding Voltage IEC 60664-33: 800
  • Insulation Resistance: >10 Ohm
  • Contact Resistance: 5mOhm
  • Mating Part(s): C09131H1142005U,C09131H1142025U
Female Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14B Arrangement, Cable Diameter 4-8.5mm
