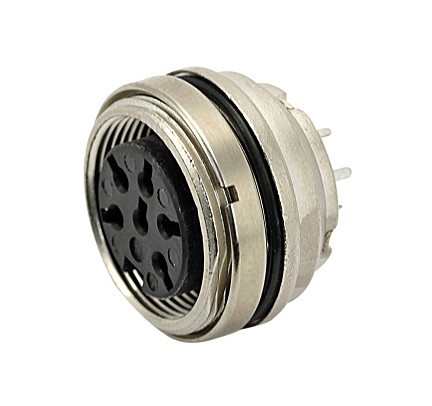

  6. C091 61G012 210 2 - M16 Rear mounting female metal receptacle with O-ring seal and ring nut mount. 12 contacts, gold plated. Contacts included. Comparable to PN# 09-0132-90-12
C091 61G012 210 2 - M16 Rear mounting female metal receptacle with O-ring seal and ring nut mount. 12 contacts, gold plated. Contacts included. Comparable to PN# 09-0132-90-12
C091 61G012 210 2 - M16 Rear mounting female metal receptacle with O-ring seal and ring nut mount. 12 contacts, gold plated. Contacts included. Comparable to PN# 09-0132-90-12

C091 61G012 210 2 - M16 Rear mounting female metal receptacle with O-ring seal and ring nut mount. 12 contacts, gold plated. Contacts included. Comparable to PN# 09-0132-90-12

$0.00
Female Receptacle
PART NUMBER: C09161G0122102
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 12
  • Current Rating: 3A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Ring Nut, Metal
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Mount: Rear mount w/ring nut
  • Operating Temperature: -40°C to +100°C
  • Pin length: 10.5mm from flange
  • Lifetime: >1000 mating cycles
  • Mating Part(s): C09131W0122002,C09131C0122002,C09131S0122002,C09131H0122002
  • Size: M16
Rear mounting female metal receptacle with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Tin plated solder area. Contacts included. NOTE: in order to a
