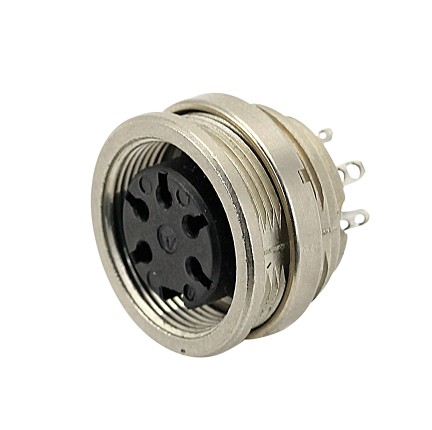

  6. C091 31N005 200 2 - M16 Front mounting female metal receptacle with O-ring seal and ring nut mount. 5 contacts, gold plated. Contacts included. Comparable to PN# 09-0116-09-05
C091 31N005 200 2 - M16 Front mounting female metal receptacle with O-ring seal and ring nut mount. 5 contacts, gold plated. Contacts included. Comparable to PN# 09-0116-09-05
C091 31N005 200 2 - M16 Front mounting female metal receptacle with O-ring seal and ring nut mount. 5 contacts, gold plated. Contacts included. Comparable to PN# 09-0116-09-05

C091 31N005 200 2 - M16 Front mounting female metal receptacle with O-ring seal and ring nut mount. 5 contacts, gold plated. Contacts included. Comparable to PN# 09-0116-09-05

$0.00
Female Receptacle
PART NUMBER: C09131N0052002
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 5
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Ring Nut, Metal
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 35 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Mount: Front mount w/ring nut
  • Operating Temperature: -40°C to +100°C
  • Lifetime: >1000 mating cycles
  • Mating Part(s): C09131W0052002,C09131C0052002,C09131S0052002,C09131H0052002
  • Size: M16
Front mounting female metal receptacle with O-ring seal and ring nut mount (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included.
