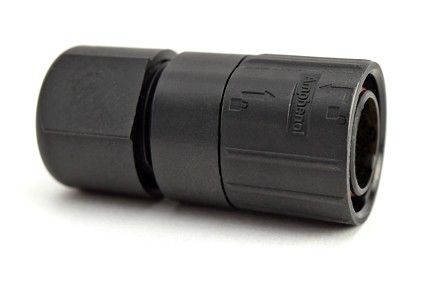

  6. C091 31H107 100 5 U Male Cable Connector, Quicklock, Size M16, 7 Contacts, Silver Contact Plating, 7B Arrangement, Cable Diameter 4-8.5mm
C091 31H107 100 5 U Male Cable Connector, Quicklock, Size M16, 7 Contacts, Silver Contact Plating, 7B Arrangement, Cable Diameter 4-8.5mm
C091 31H107 100 5 U Male Cable Connector, Quicklock, Size M16, 7 Contacts, Silver Contact Plating, 7B Arrangement, Cable Diameter 4-8.5mm

C091 31H107 100 5 U Male Cable Connector, Quicklock, Size M16, 7 Contacts, Silver Contact Plating, 7B Arrangement, Cable Diameter 4-8.5mm

$0.00
Male Cable Connector
PART NUMBER: C09131H1071005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 7
  • Contact Diameter: 1.5mm
  • Contact Type: Pin
  • Gender: Male
  • Contact Plating: Silver
  • Cable Diameter Range: 4mm - 8mm
  • Wire Gauge (AWG): 20 AWG
  • Current Rating IEC 60512-5-2: 7
  • Rated Voltage IEC 60664-1: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Shape: Circular
  • Cable Gland Size: PG9
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131G1071005U, C09131G1071095U, C09131G1072005U, C09131G1072095U
Male Cable Connector, Quicklock, Size M16, 7 Contacts, Silver Contact Plating, 7B Arrangement, Cable Diameter 4-8.5mm. Replaces C091 11H107 000 5 U.
