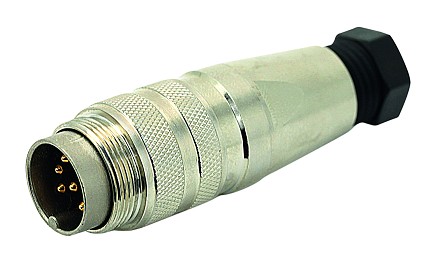

  6. C091 31H105 200 2 - M16 Male cable connector with internal strain relief and metal locking ring. 5 contacts, gold plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5117-09-05, 99-5117-19-05
C091 31H105 200 2 - M16 Male cable connector with internal strain relief and metal locking ring. 5 contacts, gold plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5117-09-05, 99-5117-19-05
C091 31H105 200 2 - M16 Male cable connector with internal strain relief and metal locking ring. 5 contacts, gold plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5117-09-05, 99-5117-19-05

C091 31H105 200 2 - M16 Male cable connector with internal strain relief and metal locking ring. 5 contacts, gold plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5117-09-05, 99-5117-19-05

$0.00
Male Cable Connector
PART NUMBER: C09131H1052002
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 5S (stereo)
  • Cable Diameter: 4 - 6mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 35 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 100V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Operating Temperature: -40²C to +100²C
  • Lifetime: >1000 mating cycles
  • Mating Part(s): C09131N1052002,C09131G1052002,C09131D1052002,C09131F1052002
  • Size: M16
Male cable connector with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included. Replaces C091 11H105 000 2.
