  6. C091 31H014 202 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14A Arrangement, Cable Diameter 8.5-10.5mm
C091 31H014 202 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14A Arrangement, Cable Diameter 8.5-10.5mm
C091 31H014 202 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14A Arrangement, Cable Diameter 8.5-10.5mm

C091 31H014 202 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14A Arrangement, Cable Diameter 8.5-10.5mm

$0.00
Male Cable Connector
PART NUMBER: C09131H0142025U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 14
  • Contact Diameter: 1.0mm
  • Contact Type: Pin
  • Gender: Male
  • Contact Plating: Gold
  • Cable Diameter Range: 8mm - 10.5mm
  • Wire Gauge (AWG): 22 AWG
  • Current Rating IEC 60512-5-2: 3
  • Rated Voltage IEC 60664-1: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Shape: Circular
  • Cable Gland Size: PG11
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131G0141005U, C09131G0141095U, C09131G0142005U, C09131G0142095U
Male Cable Connector, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14A Arrangement, Cable Diameter 8.5-10.5mm


Related Items

C091 11H014 002 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts (sold separately), 14A Arrangement, Cable Diameter 8.5-10.5mm
C091 11H014 002 5 U Male Cable Connector, Quicklock, Size M16, 14 Contacts (sold separately), 14A Arrangement, Cable Diameter 8.5-10.5mm
REQUEST A QUOTE
C091 31G014 100 5 U Female Receptacle, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Ring Nut
C091 31G014 100 5 U Female Receptacle, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Ring Nut
REQUEST A QUOTE
C091 31G014 109 5 U Female Receptacle, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Hex Nut
C091 31G014 109 5 U Female Receptacle, Quicklock, Size M16, 14 Contacts, Silver Contact Plating, 14A Arrangement, Hex Nut
REQUEST A QUOTE

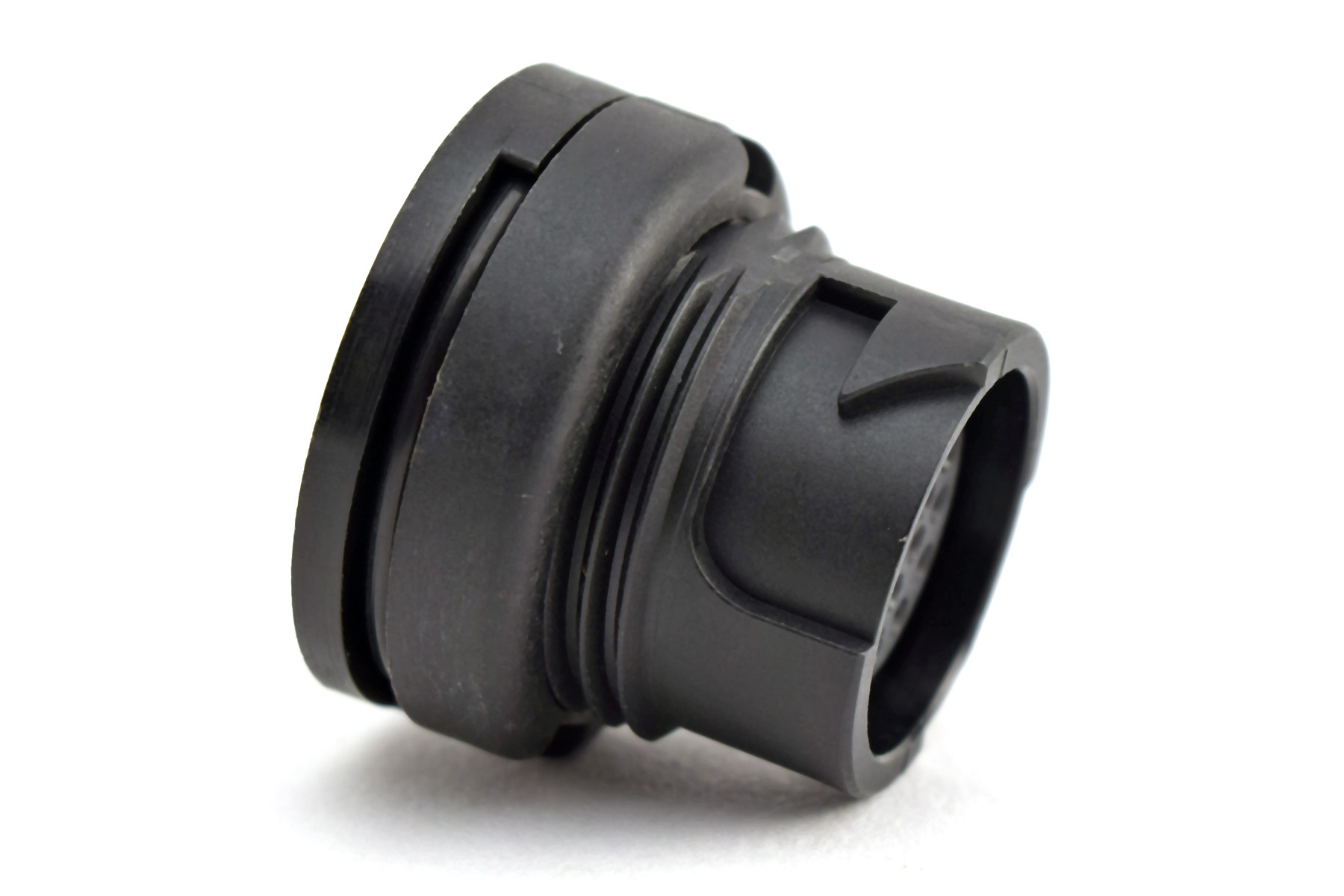

C091 31G014 200 5 U Female Receptacle, Quicklock, Size M16, 14 Contacts, Gold Contact Plating, 14A Arrangement, Ring Nut
