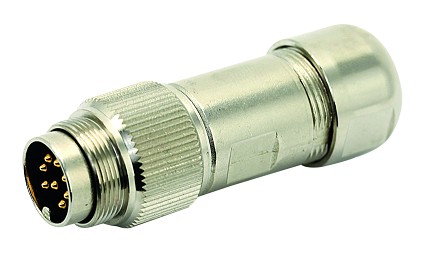

  6. C091 31H012 101 4 - M16 Male cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 6-8mm cable diameter.
C091 31H012 101 4 - M16 Male cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 6-8mm cable diameter.
C091 31H012 101 4 - M16 Male cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 6-8mm cable diameter.

C091 31H012 101 4 - M16 Male cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 6-8mm cable diameter.

$0.00
Male Cable Connector
PART NUMBER: C09131H0121014
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 12
  • Cable Diameter: 6 - 8mm
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP68 (in mated condition)
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Sealing Material: Chloroprene
  • Operating Temperature: -40°C to +100°C
  • Lifetime: >500 mating cycles
  • Mating Part(s): C09131D0121014,C09131N0121002,C09131G0121002
  • Size: M16
Male cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 6-8mm cable diameter. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Fully intermateable with C091D connectors. Contacts sold separately.
