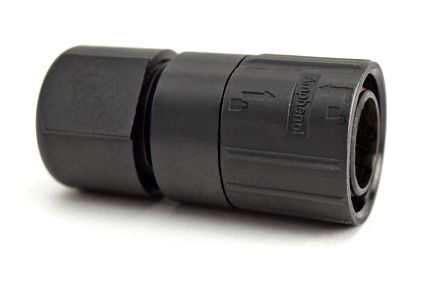

C091 31H008 200 5 U Male Cable Connector, Quicklock, Size M16, 8 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
C091 31H008 200 5 U Male Cable Connector, Quicklock, Size M16, 8 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm

C091 31H008 200 5 U Male Cable Connector, Quicklock, Size M16, 8 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm

$0.00
Male Cable Connector
PART NUMBER: C09131H0082005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 8
  • Contact Diameter: 1.5mm
  • Contact Type: Pin
  • Gender: Male
  • Contact Plating: Gold
  • Cable Diameter Range: 4mm - 8mm
  • Wire Gauge (AWG): 20 AWG
  • Current Rating IEC 60512-5-2: 7
  • Rated Voltage IEC 60664-1: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Shape: Circular
  • Cable Gland Size: PG9
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131G0081005U, C09131G0081095U, C09131G0082005U, C09131G0082095U
Male Cable Connector, Quicklock, Size M16, 8 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
