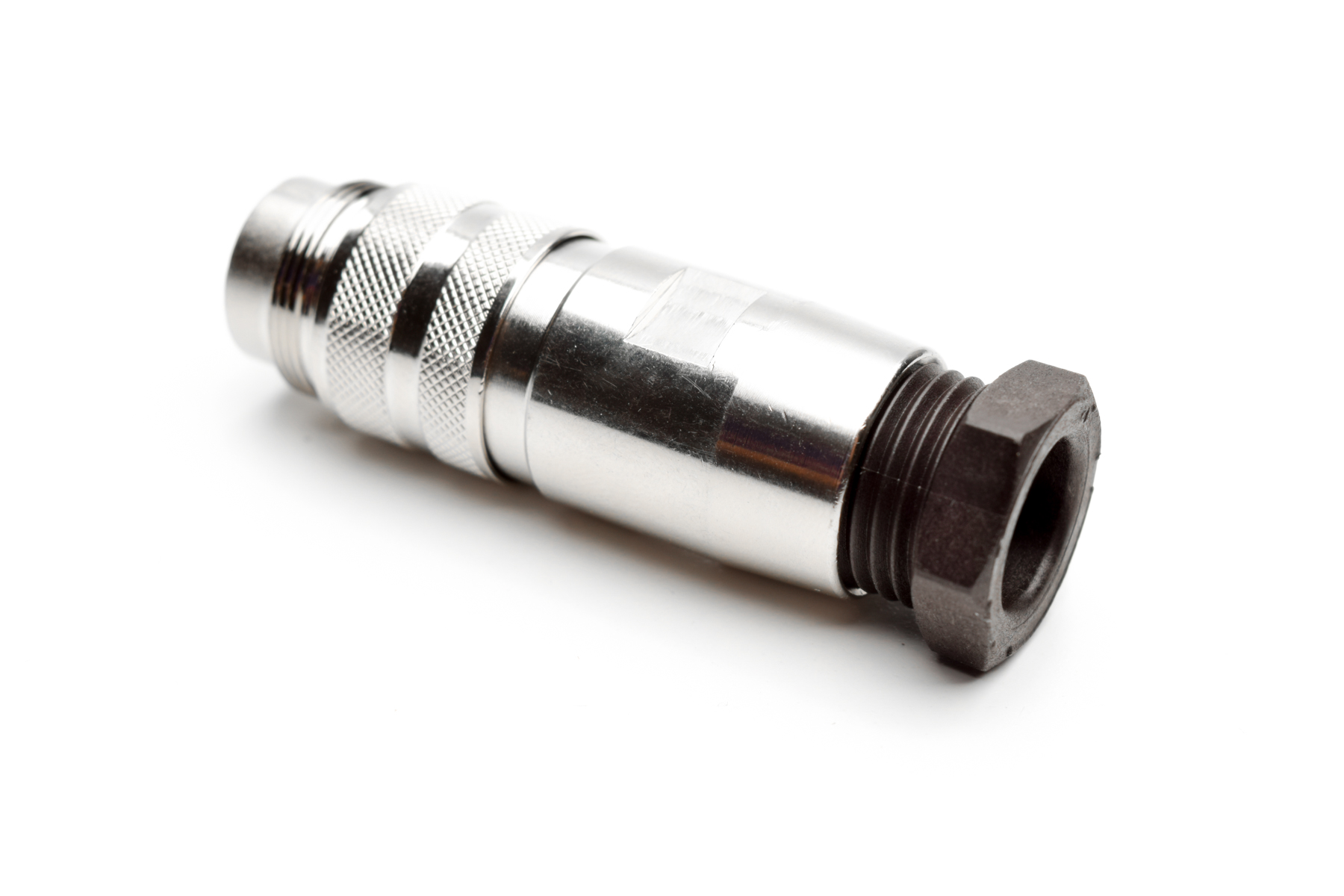

  6. C091 31H007 101 2 - M16 Male cable connector with internal strain relief and metal locking ring. 7 contacts, silver plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5625-00-07, 99-5625-15-07
C091 31H007 101 2 - M16 Male cable connector with internal strain relief and metal locking ring. 7 contacts, silver plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5625-00-07, 99-5625-15-07
C091 31H007 101 2 - M16 Male cable connector with internal strain relief and metal locking ring. 7 contacts, silver plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5625-00-07, 99-5625-15-07

C091 31H007 101 2 - M16 Male cable connector with internal strain relief and metal locking ring. 7 contacts, silver plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5625-00-07, 99-5625-15-07

$0.00
Male Cable Connector
PART NUMBER: C09131H0071012
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 7
  • Cable Diameter: 6 - 8mm
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Operating Temperature: -40°C to +100°C
  • Lifetime: >500 mating cycles
  • Mating Part(s): C09131N0071002,C09131G0071002,C09131D0071012,C09131F0071012
  • Size: M16
Male cable connector with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
