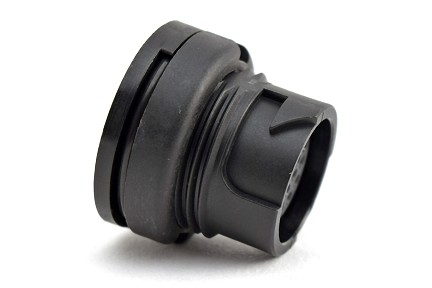

C091 31H003 100 5 U Male Cable Connector, Quicklock, Size M16, 3 Contacts, Silver Contact Plating, Ring Nut
C091 31H003 100 5 U Male Cable Connector, Quicklock, Size M16, 3 Contacts, Silver Contact Plating, Ring Nut

C091 31H003 100 5 U Male Cable Connector, Quicklock, Size M16, 3 Contacts, Silver Contact Plating, Ring Nut

$0.00
Male Cable Connector
PART NUMBER: C09131H0031005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 3
  • Contact Diameter: 1.5mm
  • Contact Type: Pin
  • Gender: Male
  • Contact Plating: Silver
  • Cable Diameter Range: 4mm - 8mm
  • Wire Gauge: 20 AWG
  • Current Rating IEC 60512-5-2: 10
  • Rated Voltage IEC 60664-1: 150
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Cable Gland Size: PG9
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131G0031005U, C09131G0031095U, C09131G0032005U, C09131G0032095U
Male Cable Connector, Quicklock, Size M16, 3 Contacts, Silver Contact Plating, Ring Nut
