  5. C091 31G105 100 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Ring Nut
C091 31G105 100 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Ring Nut
C091 31G105 100 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Ring Nut

C091 31G105 100 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Ring Nut

$0.00
Female Receptacle
PART NUMBER: C09131G1051005U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 5
  • Contact Diameter: 1.5mm
  • Contact Type: Socket
  • Gender: Female
  • Contact Plating: Silver
  • Wire Gauge: 20 AWG
  • Current Rating IEC 60512-5-2: 7
  • Rated Voltage IEC 60664-1: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Assembly of Receptacle: Single Hole Rear Assembly
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131H1051005U, C09131H1051025U, C09131H1052005U, C09131H1052025U
Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Ring Nut. Replaces C091 11G105 000 5 U.


Related Items

C091 31G105 109 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Hex Nut
C091 31G105 109 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Hex Nut
REQUEST A QUOTE

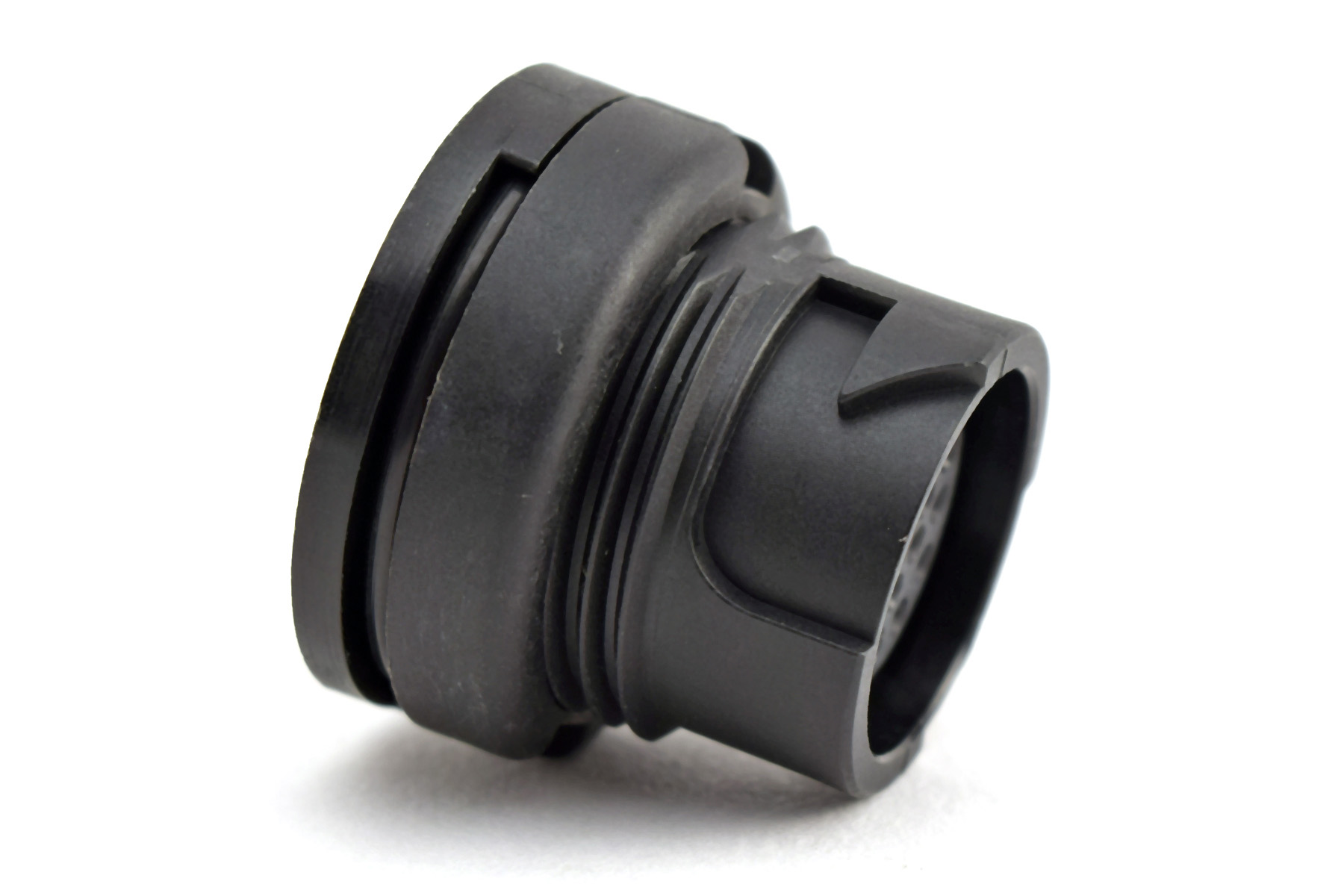

C091 31G105 200 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Ring Nut
C091 31G105 200 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Ring Nut
REQUEST A QUOTE

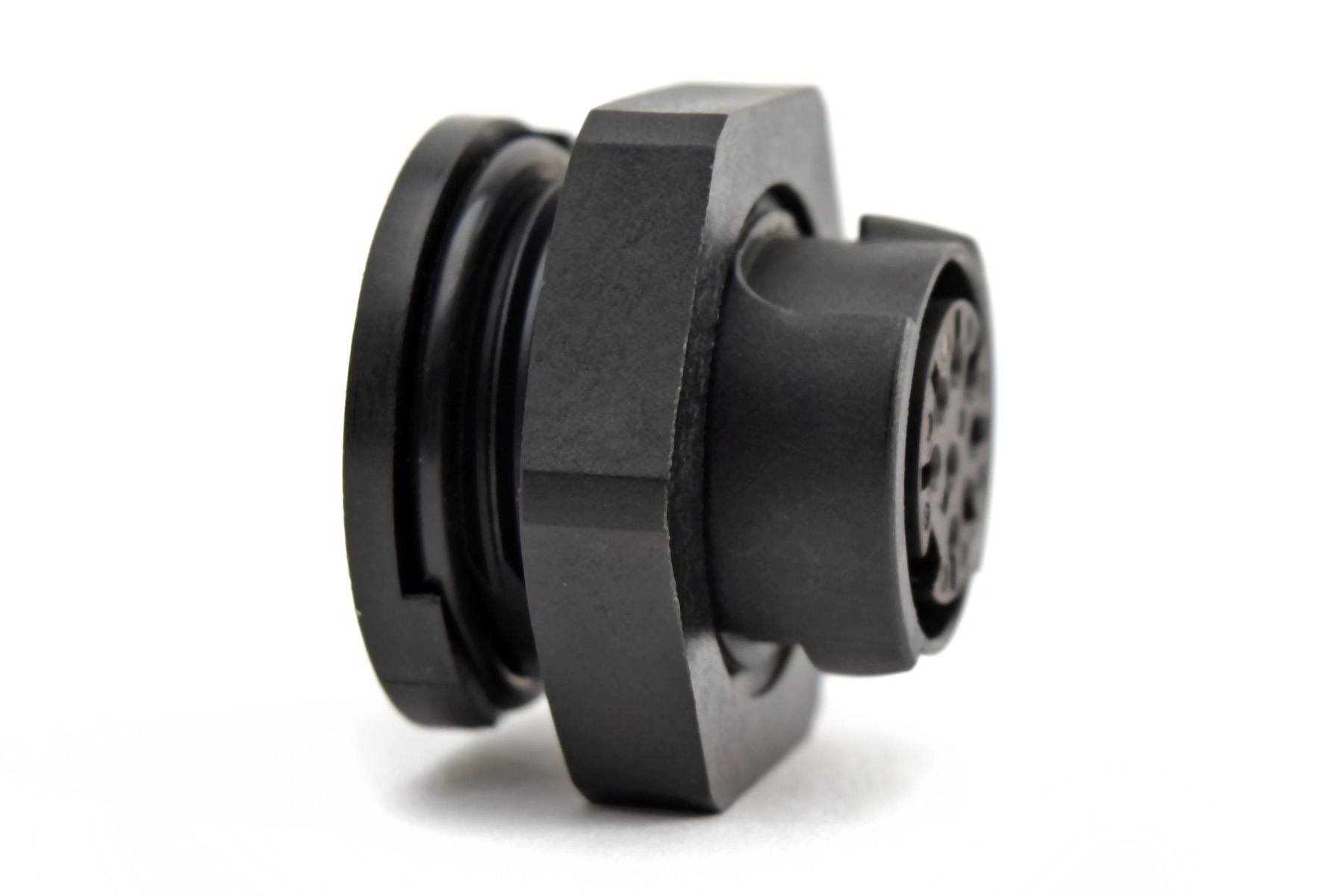

C091 31G105 209 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Hex Nut
C091 31G105 209 5 U Female Receptacle, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Hex Nut
REQUEST A QUOTE
C091 31H105 102 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, 5B Arrangement, Silver Contact Plating, Cable Diameter 4-8.5mm
C091 31H105 102 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, 5B Arrangement, Silver Contact Plating, Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 31H105 102 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Cable Diameter 8.5-10.5mm
C091 31H105 102 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, Silver Contact Plating, 5B Arrangement, Cable Diameter 8.5-10.5mm
REQUEST A QUOTE
C091 31H105 200 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Cable Diameter 4-8.5mm
C091 31H105 200 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 31H105 202 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Cable Diameter 8.5-10.5mm
C091 31H105 202 5 U Male Cable Connector, Quicklock, Size M16, 5 Contacts, Gold Contact Plating, 5B Arrangement, Cable Diameter 8.5-10.5mm
REQUEST A QUOTE
FH 0200 0911 - M16 Removal Tool For 1.5mm Contacts
FH 0200 0911 - M16 Removal Tool For 1.5mm Contacts
REQUEST A QUOTE
HN02 015 0046 1 - 1.5mm socket contact, silver plated, wire gauge 0.34 - 0.5mm². Stamped contacts on reel, 2000 pcs
HN02 015 0046 1 - 1.5mm socket contact, silver plated, wire gauge 0.34 - 0.5mm². Stamped contacts on reel, 2000 pcs
REQUEST A QUOTE
HN0201500462 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500462 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500471 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500471 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500472 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500472 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
TA 0000 - TA Series hand crimping toolFor single contacts. Heavymate Series D,E,F,M, C091 A Series.
TA 0000 - TA Series hand crimping toolFor single contacts. Heavymate Series D,E,F,M, C091 A Series.
REQUEST A QUOTE
TN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0201500521 1.5mm silver socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
TN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0201500522 1.5mm gold socket (female) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
VN0201500461 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500461 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0201500462 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500462 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0201500471 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500471 1.5mm silver socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0201500472 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
VN0201500472 1.5mm gold socket (female) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN 02 015 0052 1 - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, silver plated.
VN 02 015 0052 1 - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, silver plated.
REQUEST A QUOTE
VN02 015 0052 (2) - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, gold plated
VN02 015 0052 (2) - Stamped single contacts in plastic bag, Socket, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
ZN0201500461 1.5mm silver socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
ZN0201500461 1.5mm silver socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
REQUEST A QUOTE
ZN0201500462 1.5mm gold socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
ZN0201500462 1.5mm gold socket (female) stamped contacts on reel for hand crimping tools. 200 pcs.
REQUEST A QUOTE
ZN02 015 0047 (1) - Stamped contacts on reel for hand crimping tools. 1.5mm contact diameter, silver plated
ZN02 015 0047 (1) - Stamped contacts on reel for hand crimping tools. 1.5mm contact diameter, silver plated
REQUEST A QUOTE
ZN02 015 0047 (2) - Stamped contacts on reel for hand crimping tools.1,5 mmFor wire gauge AWG 18 gold plated
ZN02 015 0047 (2) - Stamped contacts on reel for hand crimping tools.1,5 mmFor wire gauge AWG 18 gold plated
REQUEST A QUOTE
