  5. C091 31G019 209 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Gold Contact Plating, Hex Nut
C091 31G019 209 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Gold Contact Plating, Hex Nut
C091 31G019 209 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Gold Contact Plating, Hex Nut

C091 31G019 209 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Gold Contact Plating, Hex Nut

$0.00
Female Receptacle
PART NUMBER: C09131G0192095U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 19
  • Contact Diameter: 1.0mm
  • Contact Type: Socket
  • Gender: Female
  • Contact Plating: Gold
  • Wire Gauge (AWG): 22 AWG
  • Current Rating IEC 60512-5-2: 3
  • Rated Voltage IEC 60664-1: 32
  • Protection: IP68
  • Operating Temperature: -40°C to +100°C
  • Housing: Thermoplastic
  • Color: Black
  • Termination: Solder
  • Sealing Material: Chloroprene, silicone
  • Locking: QUICKLOCK SYSTEM
  • Assembly of Receptacle: Single Hole Rear Assembly
  • RoHS Compliant?: Yes
  • Mating Cycles: >500
  • Mating Parts: C09131H0191005U, C09131H0191025U, C09131H0192005U, C09131H0192025U
Female Receptacle, Quicklock, Size M16, 19 Contacts, Gold Contact Plating, Hex Nut


Related Items

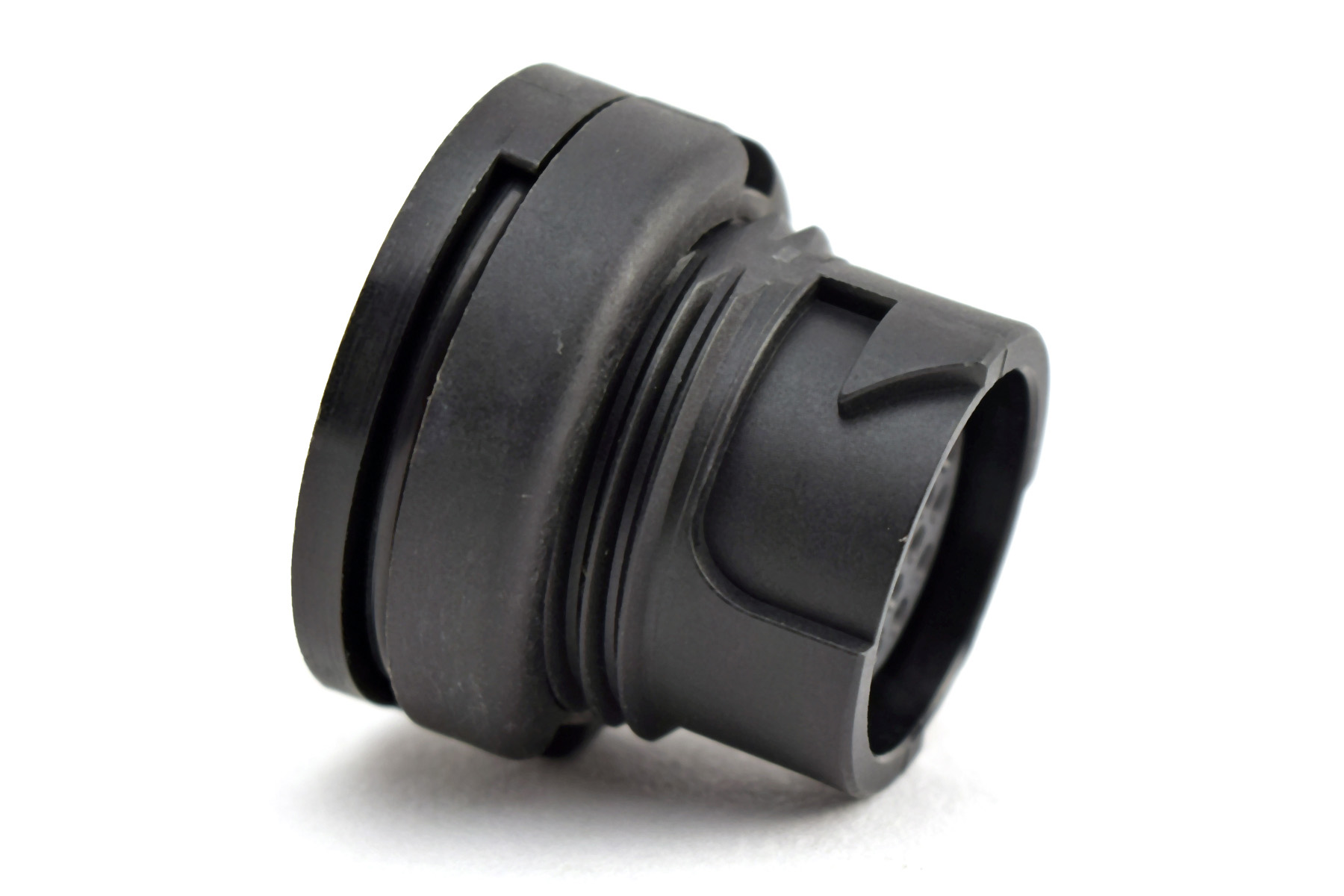

C091 31G019 100 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Silver Contact Plating, Ring Nut
C091 31G019 100 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Silver Contact Plating, Ring Nut
REQUEST A QUOTE

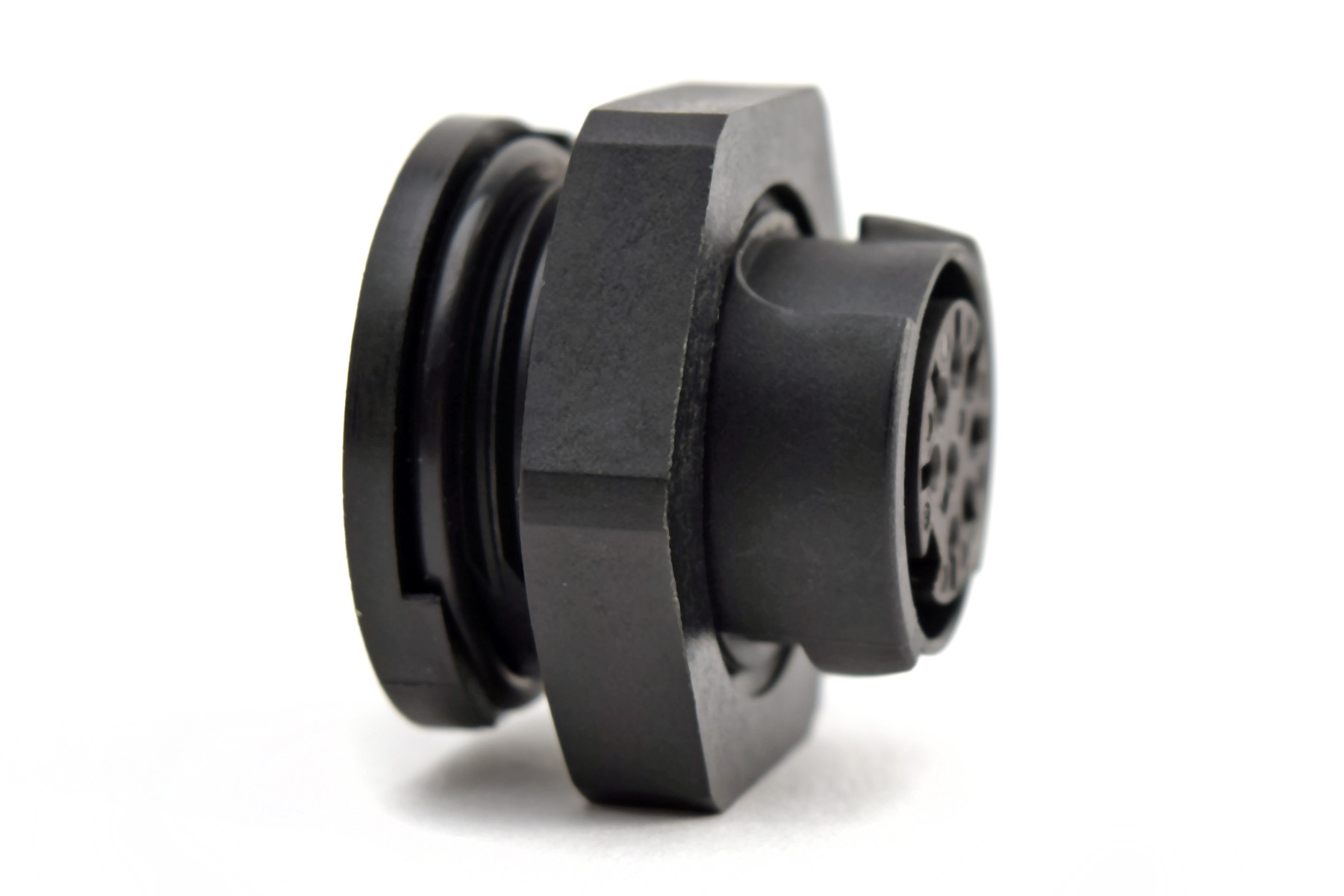

C091 31G019 109 5 U Female Receptacle, Quicklock, Size M16, 19 Contacts, Silver Contact Plating, Hex Nut
