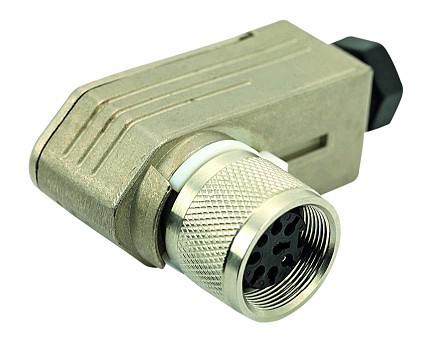

  6. C091 31F012 100 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5130-75-12
C091 31F012 100 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5130-75-12
C091 31F012 100 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5130-75-12

C091 31F012 100 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, silver plated, 4-6mm cable diameter. Contacts included. Comparable to PN# 99-5130-75-12

$0.00
Female Cable Connector
PART NUMBER: C09131F0121002
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 12
  • Cable Diameter: 4 - 6mm
  • Current Rating: 3A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Right angled; metal
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Operating Temperature: -40°C to +100°C
  • Lifetime: >500 mating cycles
  • Mating Part(s): C09131W0121002,C09131C0121002,C09131K0121002,C09131H0121002
  • Size: M16
Female cable connector with internal strain relief and metal locking ring. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
