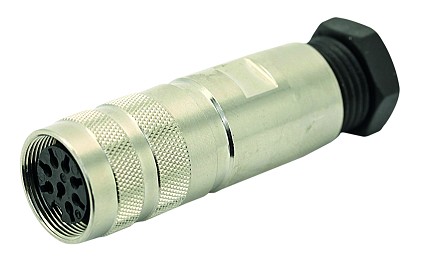

  6. C091 31D012 201 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5630-00-12, 99-5630-15-12
C091 31D012 201 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5630-00-12, 99-5630-15-12
C091 31D012 201 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5630-00-12, 99-5630-15-12

C091 31D012 201 2 - M16 Female cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter. Contacts included. Comparable to PN# 99-5630-00-12, 99-5630-15-12

$0.00
Female Cable Connector
PART NUMBER: C09131D0122012
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 12
  • Cable Diameter: 6 - 8mm
  • Current Rating: 3A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Gold
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.25 mm² (24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Operating Temperature: -40°C to +100°C
  • Lifetime: >1000 mating cycles
  • Mating Part(s): C09131W0122002,C09131C0122002,C09131H0122012,C09131K0122012
  • Size: M16
Female cable connector with internal strain relief and metal locking ring. 12 contacts, gold plated, 6-8mm cable diameter.Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Contacts included.
