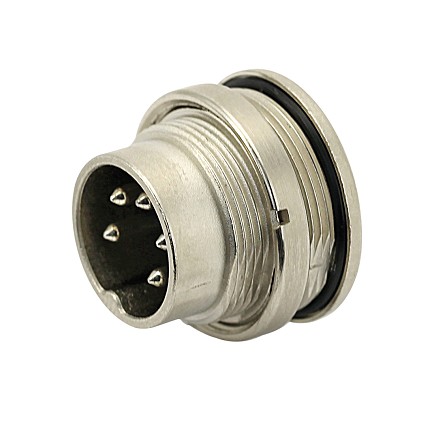

  6. C091 31C107 100 2 - M16 Rear mounting male metal receptacle with O-ring seal and ring nut mount. 7 contacts, silver plated. Contacts included.
C091 31C107 100 2 - M16 Rear mounting male metal receptacle with O-ring seal and ring nut mount. 7 contacts, silver plated. Contacts included.
C091 31C107 100 2 - M16 Rear mounting male metal receptacle with O-ring seal and ring nut mount. 7 contacts, silver plated. Contacts included.

C091 31C107 100 2 - M16 Rear mounting male metal receptacle with O-ring seal and ring nut mount. 7 contacts, silver plated. Contacts included.

$0.00
Male Receptacle
PART NUMBER: C09131C1071002
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 7 B Arrangement
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Contact Plating: Silver
  • Insert: Thermoplastic
  • Version: Ring Nut, Metal
  • Wire Gauge: 0.5 mm² (20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 100V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Mount: Rear mount w/ring nut
  • Operating Temperature: -40°C to +100°C
  • Lifetime: >500 mating cycles
  • Mating Part(s): C09131N1071002,C09131G1071002,C09131D1071002,C09131F1071002
  • Size: M16
Rear mounting male metal receptacle with O-ring seal and ring nut mount (hex nut available upon request). 7 contacts, silver plated, B arrangement. Complete EMI shielding in the fully mated and locked position (EMI security). Contacts included. Contact arrangement according to DIN EN 61076. Replaces C091 11C107 000 2.
