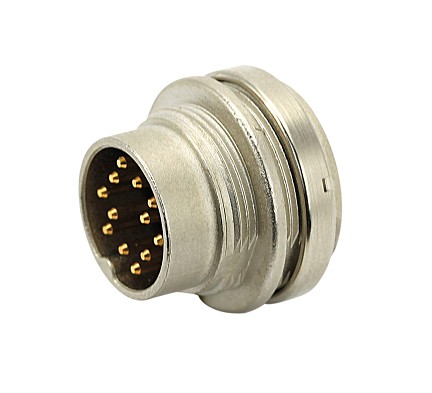

  6. C091 11W014 000 2 - M16 Front mounting male metal receptacle with O-ring seal and ring nut mount. 14 contacts. Contacts sold separately.
C091 11W014 000 2 - M16 Front mounting male metal receptacle with O-ring seal and ring nut mount. 14 contacts. Contacts sold separately.
C091 11W014 000 2 - M16 Front mounting male metal receptacle with O-ring seal and ring nut mount. 14 contacts. Contacts sold separately.

C091 11W014 000 2 - M16 Front mounting male metal receptacle with O-ring seal and ring nut mount. 14 contacts. Contacts sold separately.

$0.00
Male Receptacle
PART NUMBER: C09111W0140002
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 14
  • Current Rating: 3A
  • Termination: Crimp
  • Locking: Screw
  • Insert: Thermoplastic
  • Version: Ring Nut, Metal
  • Wire Gauge: 0.09 - 0.25mm² (28-24 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 50 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 150V
  • Rated Voltage per UL 1977: 60V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1200V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Mount: Front mount w/ring nut
  • Operating Temperature: -40°C to +100°C
  • Mating Part(s): C09111N0140002,C09111G0140002,C09111D0140002,C09111F0140002
  • Size: M16
Front mounting male metal receptacle with O-ring seal and ring nut mount (hex nut available upon request). 14 contacts. Complete EMI shielding in the fully mated and locked position (EMI security). Contacts sold separately.
