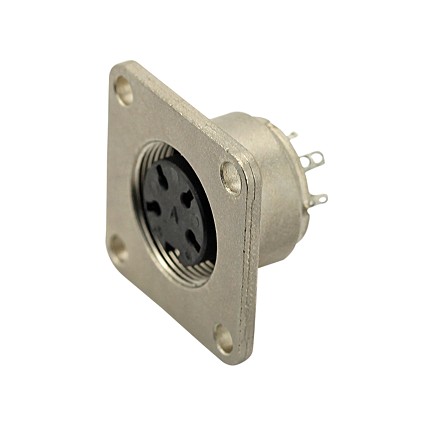

  6. C091 11T007 000 2 - M16 Flange mount female metal receptacle with O-ring seal and ring nut. 7 contacts
C091 11T007 000 2 - M16 Flange mount female metal receptacle with O-ring seal and ring nut. 7 contacts
C091 11T007 000 2 - M16 Flange mount female metal receptacle with O-ring seal and ring nut. 7 contacts

C091 11T007 000 2 - M16 Flange mount female metal receptacle with O-ring seal and ring nut. 7 contacts

$0.00
Female Receptacle
PART NUMBER: C09111T0070002
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 7
  • Current Rating: 7A
  • Termination: Solder
  • Locking: Screw
  • Insert: Thermoplastic
  • Version: Ring Nut, Metal
  • Wire Gauge: 0.09 - 0.75mm² (28-20 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP67/ 65 (in mated condition)
  • Insertion/Withdrawal Force: 55 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: < 5mΩ
  • Gasket: Neoprene
  • Mount: Flange mount w/ring nut
  • Operating Temperature: -40°C to +100°C
  • Mating Part(s): C09111W0070002,C09111C0070002,C09111S0070002,C09111H0070002
  • Size: M16
Flange mount female metal receptacle with O-ring seal and ring nut (hex nut available upon request). Complete EMI shielding in the fully mated and locked position (EMI security). Replaces C091 11T107 000 2.
