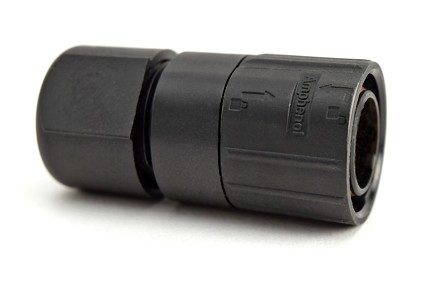

  6. C091 11H006 002 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 8.5-10.5mm
C091 11H006 002 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 8.5-10.5mm
C091 11H006 002 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 8.5-10.5mm

C091 11H006 002 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 8.5-10.5mm

$0.00
Male Cable Connector
PART NUMBER: C09111H0060025U
Datasheet: datasheet Download datasheet View / Download

SPECIFICATIONS:

  • Size: M16
  • No. of Contacts: 8
  • No. of PE Contacts: 0
  • Contact Size (Diameter): 1.5mm
  • Style: Pin
  • Gender: Male
  • Shape: Circular
  • Cable Gland Size: PG11
  • Wire Gauge: 20 AWG
  • Rated Voltage IEC 60664-4: 32
  • Current Carrying Capacity Standard: IEC 60512-5-2
  • Current Rating: 7
  • Protection: IP68
  • Contact Resistance: 0.005
  • Insertion/Withdrawal Force: 60N
  • Termination Technique: Crimp
  • Operating Temperature: -40°C to +100°C
  • Color: Black
  • Housing: Thermoplastic
  • Sealing Material: Chloroprene, silicone
  • Mating Part(s): C09111G0060005U,C09111G0060095U
Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 8.5-10.5mm

Related Items

C091 11G006 000 5 U Female Receptacle, Quicklock, Size M16, 6 Contacts (sold separately), Ring Nut
C091 11G006 000 5 U Female Receptacle, Quicklock, Size M16, 6 Contacts (sold separately), Ring Nut
REQUEST A QUOTE
C091 11G006 009 5 U Female Receptacle, Quicklock, Size M16, 6 Contacts (sold separately), Hex Nut
C091 11G006 009 5 U Female Receptacle, Quicklock, Size M16, 6 Contacts (sold separately), Hex Nut
REQUEST A QUOTE
C091 11H006 000 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 4-8.5mm
C091 11H006 000 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts (sold separately), Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 31H006 100 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Silver Contact Plating, , Cable Diameter 4-8.5mm
C091 31H006 100 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Silver Contact Plating, , Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 31H006 102 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Silver Contact Plating, Cable Diameter 8.5-10.5mm
C091 31H006 102 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Silver Contact Plating, Cable Diameter 8.5-10.5mm
REQUEST A QUOTE
C091 31H006 200 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
C091 31H006 200 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Gold Contact Plating, Cable Diameter 4-8.5mm
REQUEST A QUOTE
C091 31H006 202 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Gold Contact Plating, Cable Diameter 8.5-10.5mm
C091 31H006 202 5 U Male Cable Connector, Quicklock, Size M16, 6 Contacts, Gold Contact Plating, Cable Diameter 8.5-10.5mm
REQUEST A QUOTE
FH 0200 0911 - M16 Removal Tool For 1.5mm Contacts
FH 0200 0911 - M16 Removal Tool For 1.5mm Contacts
REQUEST A QUOTE
HN01 015 0046 1 - 1.5mm pin contact, silver plated, wire gauge 0.34-0.50mm². Stamped contacts on reel. 2000 pcs
HN01 015 0046 1 - 1.5mm pin contact, silver plated, wire gauge 0.34-0.50mm². Stamped contacts on reel. 2000 pcs
REQUEST A QUOTE
HN0101500462 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500462 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500471 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500471 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500472 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500472 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
HN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
HN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds right). 2,000 pcs.
REQUEST A QUOTE
TA 0000 - TA Series hand crimping toolFor single contacts. Heavymate Series D,E,F,M, C091 A Series.
TA 0000 - TA Series hand crimping toolFor single contacts. Heavymate Series D,E,F,M, C091 A Series.
REQUEST A QUOTE
TN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0101500521 1.5mm silver pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
TN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
TN0101500522 1.5mm gold pin (male) stamped contacts on reel for crimp machines (feeds left). 2,000 pcs
REQUEST A QUOTE
VN0101500461 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0795-085-00
VN0101500461 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0795-085-00
REQUEST A QUOTE
VN0101500462 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
VN0101500462 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN0101500471 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0796-085-00
VN0101500471 1.5mm silver pin (male) stamped single contacts in plastic bag. 100 pcs. Comparable to PN# 61-0796-085-00
REQUEST A QUOTE
VN0101500472 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
VN0101500472 1.5mm gold pin (male) stamped single contacts in plastic bag. 100 pcs.
REQUEST A QUOTE
VN 01 015 0052 1 - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, silver plated.
VN 01 015 0052 1 - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, silver plated.
REQUEST A QUOTE
VN01 015 0052 (2) - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, gold plated
VN01 015 0052 (2) - Stamped single contacts in plastic bag, Pin, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
ZN01 015 0046 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
ZN01 015 0046 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
REQUEST A QUOTE
ZN01 015 0046 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
ZN01 015 0046 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
ZN01 015 0047 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
ZN01 015 0047 (1) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, silver plated
REQUEST A QUOTE
ZN01 015 0047 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
ZN01 015 0047 (2) - Stamped contacts on reel for hand crimping tools. Pin, 1.5mm contact diameter, gold plated
REQUEST A QUOTE
