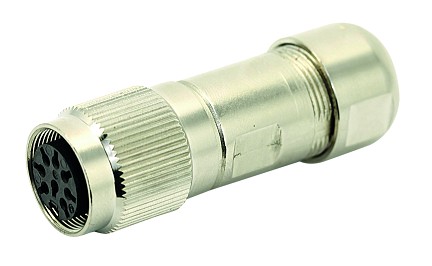

  6. C091 11D003 000 4 - M16 Female cable connector with internal strain relief and metal locking ring. 3 contacts, 4-6mm cable diameter.
C091 11D003 000 4 - M16 Female cable connector with internal strain relief and metal locking ring. 3 contacts, 4-6mm cable diameter.
C091 11D003 000 4 - M16 Female cable connector with internal strain relief and metal locking ring. 3 contacts, 4-6mm cable diameter.

C091 11D003 000 4 - M16 Female cable connector with internal strain relief and metal locking ring. 3 contacts, 4-6mm cable diameter.

$0.00
Female Cable Connector
PART NUMBER: C09111D0030004
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Contacts: 3
  • Cable Diameter: 4 - 6mm
  • Current Rating: 10A
  • Termination: Crimp
  • Locking: Screw
  • Insert: Thermoplastic
  • Version: Straight; metal
  • Wire Gauge: 0.09 - 1.0mm² (28-18 AWG)
  • Housing: Zinc Die Cast, Nickel Plated
  • Protection: IP68 (in mated condition)
  • Insertion/Withdrawal Force: 25 N
  • Insulation Resistance: > 10(10) Ω
  • Rated Voltage IEC 60664-1: 300V
  • Rated Voltage per UL 1977: 250V
  • Rated Impulse Withstanding Voltage IEC 60664-1: 1500V
  • Contact Resistance: <5mΩ
  • Sealing Material: Chloroprene
  • Operating Temperature: -40°C to +100°C
  • Mating Part(s): C09111H0030004,C09111W0030002,C09111C0030002
  • Size: M16
Female cable connector with internal strain relief and metal locking ring. 3 contacts, 4-6mm cable diameter. Complete EMI shielding in the fully mated and locked position (EMI security). Screw locking according to IEC 61076-2-106. Fully intermateable with C091D connectors. Contacts sold separately.
