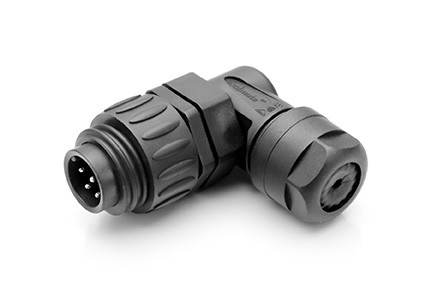

  6. C01630K00620012 6 +PE Male, right angled cable connector with strain relief and clamping ring, black backshell
C01630K00620012 6 +PE Male, right angled cable connector with strain relief and clamping ring, black backshell
C01630K00620012 6 +PE Male, right angled cable connector with strain relief and clamping ring, black backshell

C01630K00620012 6 +PE Male, right angled cable connector with strain relief and clamping ring, black backshell

$0.00
Cable Connector
PART NUMBER: C01630K00620012
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Number of Contacts: 6 + PE
  • Type: Screw
  • Backshell Color: Black
  • Rated Voltage: 250 V
  • Rated Impulse Withstand Voltage: 6000 V
  • Pollution Degree: 3
  • Installation (overvoltage) Category: III
  • Material Group: II
  • Current Carrying Capacity: 12A
  • Insulation Resistance: ≥ 10(8) Ω
  • Contact Resistance: ≤ 5 mΩ
  • Climatic Category: 40 / 100 / 56
  • Operating Temperature: -40°C to +100°C
  • Insertion and Withdrawal Force: <15 N
  • Mechanical Operation: > 500 Mating Cycles
  • Housing Material: PA 6.6 / PA 6
  • Dielectric Material: PA 6.6 / PA 6
  • Gasket Material: Neoprene
  • Material Lace for Protective Cap: TPE
  • Contact Plating: Gold Plated
  • Termination Technique: Screw
  • Wire Gauge / AWG: 0.75mm² / AWG 18-14
  • Flammability: V0
  • Locking System: Round Thread
  • Degree of Protection: IP65/67
6 +PE Male, right angled cable connector with strain relief and clamping ring, black backshell
