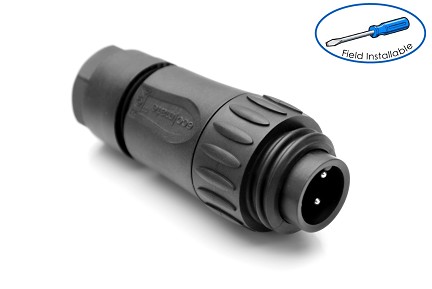

1. C01620H00380412 3+ PE Male straight cable connector with 4 pressure plate at PE, black
C01620H00380412 3+ PE Male straight cable connector with 4 pressure plate at PE, black
C01620H00380412 3+ PE Male straight cable connector with 4 pressure plate at PE, black

C01620H00380412 3+ PE Male straight cable connector with 4 pressure plate at PE, black

$0.00
Cable Connector
PART NUMBER: C01620H00380412
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • No of Positions: 3+PE
  • Type: Field installable screw termination
  • Gender: Male
  • Contact Resistance: = 5 mO
  • Insert Material: PA 6.6 / PA6
  • Color: Black
  • Contact Plating: Silver
  • Gasket Material: Neoprene
  • Voltage Rating: 400V
  • Impulse Voltage Rating: 6000V
  • Degree of Protection: IP65/67
  • Amperage: 16A
3+ PE Male straight cable connector with 4 pressure plate at PE, black. Field installable screw termination.
