  5. 6+PE Position, 250V

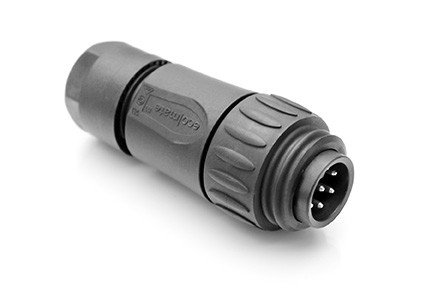

  6. C01610H00601012 6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating. Black back shell. Comparable to 99-4201-14-07
C01610H00601012 6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating. Black back shell. Comparable to 99-4201-14-07
C01610H00601012 6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating. Black back shell. Comparable to 99-4201-14-07

C01610H00601012 6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating. Black back shell. Comparable to 99-4201-14-07

$0.00
Cable Connector
PART NUMBER: C01610H00601012
Datasheet: datasheet Download datasheet View / Download    3D Model: datasheet Download 3D Model View/Download

SPECIFICATIONS:

  • Number of Contacts: 6 + PE
  • Type: Crimp
  • Backshell Color: Black
  • Rated Voltage: 250 V
  • Rated Impulse Withstand Voltage: 4000 V
  • Pollution Degree: 3
  • Installation (overvoltage) Category: III
  • Material Group: II
  • Current Carrying Capacity: 13 A/ + 55 °C
  • Insulation Resistance: ≥ 10(8) Ω
  • Contact Resistance: ≤ 5 mΩ
  • Climatic Category: 40 / 125 / 56
  • Operating Temperature: -40°C to +125°C
  • Degree of Protection: IP65/67
  • Insertion and Withdrawal Force: < 30 N
  • Mechanical Operation: > 500 Mating Cycles
  • Housing Material: PA 6.6 / PA 6
  • Dielectric Material: PA 6.6 / PA 6
  • Gasket Material: Neoprene
  • Material Lace for Protective Cap: TPE
  • Contact Plating: Silver or Gold Plated
  • Termination Technique: Crimp
  • Wire Gauge / AWG: 0.14 - 1.5 mm² / AWG 26 - 20
  • Flammability: V0
  • Locking System: Round Thread
  • Cable Diameter: 6-10mm
6+PE Male, straight cable connector with strain relief, internal cable clamping and clamping ring. Crimp contacts sold separately. Available in gold or silver plating. Comparable to 99-4201-14-07
